Individual hose record

131-9836 Hose Repair Specifications

Excavator · Caterpillar · CAT®315B L · Swivel Joint

Finished length1,900 mm

Locate this hose

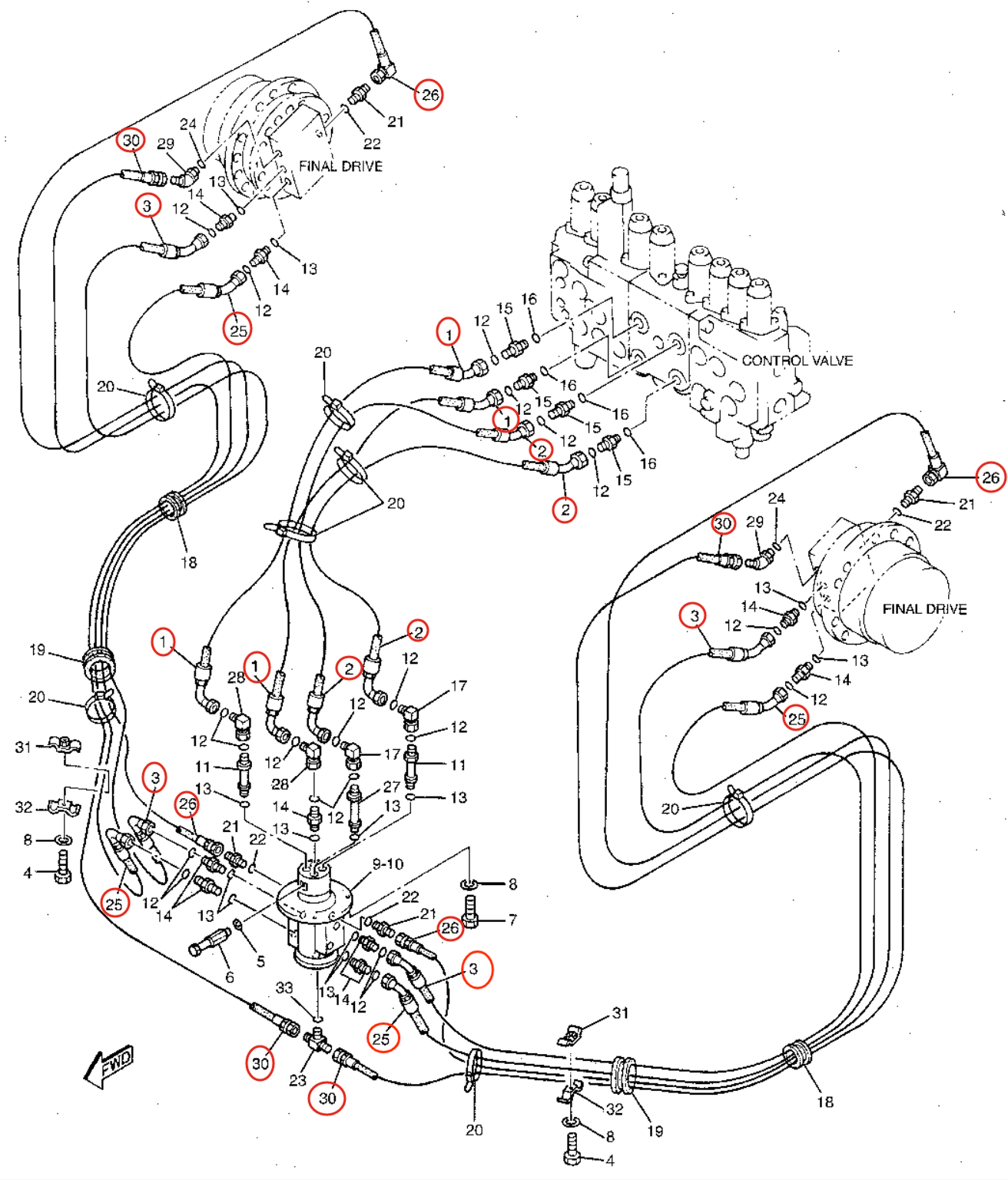

Installation diagram — Pipe No. 30

Locate Pipe No. 30 in the diagram, then confirm part number 131-9836 before removing the hose.

Caterpillar CAT®315B L installation diagram showing hydraulic hose 131-9836 at Pipe No. 30 — Caterpillar CAT®315B LPart 131-9836 · Pipe No. 30Open full-size diagram

Repair specifications

Part number: 131-9836
Diagram pipe number: 30
Installation route: 回转接头~行走马达(规格1)
Hose specification: DN13;-8;10.3Mpa
Finished length: 1,900 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 29

135-1147

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,000 mm
Specification: DN13;-8;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
