Individual hose record

7V-1038 Hose Repair Specifications

Excavator · Caterpillar · CAT®225B · Attachments

Finished length279 mm

Locate this hose

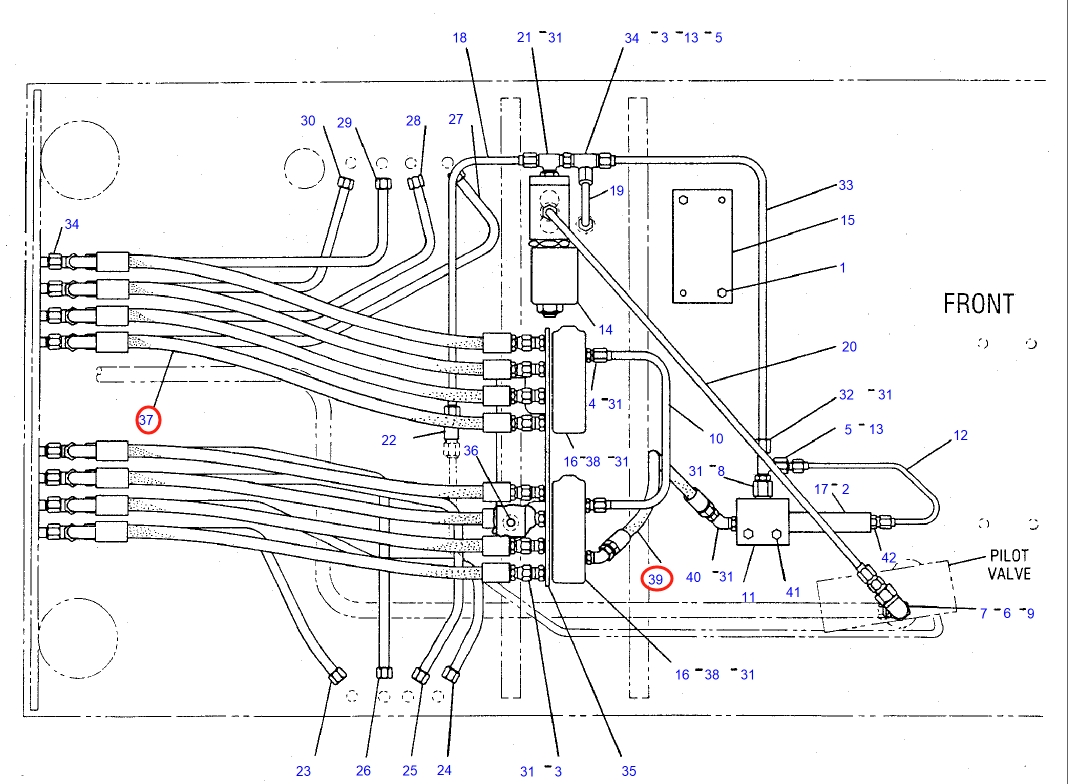

Installation diagram — Pipe No. 39

Locate Pipe No. 39 in the diagram, then confirm part number 7V-1038 before removing the hose.

Caterpillar CAT®225B installation diagram showing hydraulic hose 7V-1038 at Pipe No. 39 — Caterpillar CAT®225BPart 7V-1038 · Pipe No. 39Open full-size diagram

Repair specifications

Part number: 7V-1038
Diagram pipe number: 39
Installation route: 过渡阀块(驾驶室前)~接线板(驾驶室中)
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 279 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 11

6W-5415

Installation route: 先导阀(分配阀后)~过渡阀块(分配阀上)

Length: 415 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 25

7V-0719

Installation route: 控制阀(发动机前)~接线板(回转马达右)

Length: 1,360 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 6

8K-0800

Installation route: 先导阀(中转接头后)~先导排油箱

Length: 894 mm
Specification: DN13;1SN-8;14Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 1

3V-9113

Installation route: 大臂(前段)~大臂(后段)

Length: 3,450 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制外螺纹37°锥

View full repair specifications

Diagram Pipe No. 4

6W-4640

Installation route: 控制阀(发动机前)~驾驶室(右手柄后)

Length: 794 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 9

3V-4655

Installation route: 大臂(附加装置)~控制阀(旋转器)

Length: 1,900 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 17

2G-3738

Installation route: 控制阀(发动机前)~接线板(回转马达右)

Length: 1,510 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
