Individual hose record

8U-0899 Hose Repair Specifications

Excavator · Caterpillar · CAT®213B · Attachments

Finished length1,091 mm

Locate this hose

Installation diagram — Pipe No. 3

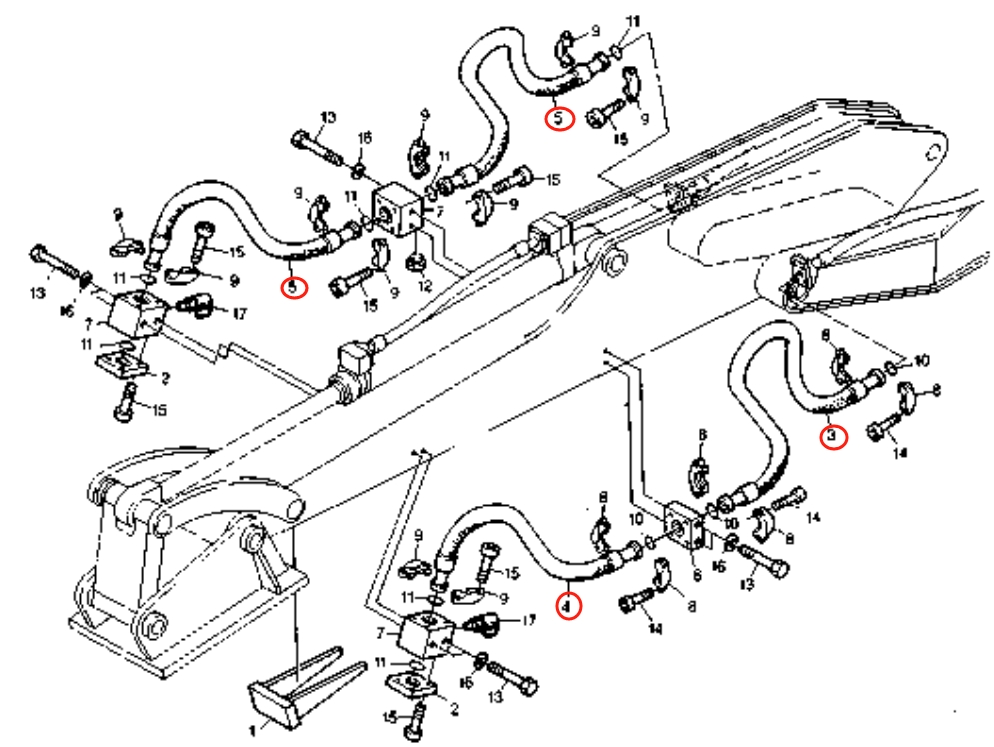

Locate Pipe No. 3 in the diagram, then confirm part number 8U-0899 before removing the hose.

Caterpillar CAT®213B installation diagram showing hydraulic hose 8U-0899 at Pipe No. 3 — **Caterpillar CAT®213B**Part 8U-0899 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 8U-0899
Diagram pipe number: 3
Installation route: 大臂铁管~阀块(小臂)
Hose specification: DN32;2SN-20;12.5Mpa
Finished length: 1,091 mm
Working pressure: 12.5 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

8U-2653

Installation route: 过渡阀块(大臂座销下)~

Length: 10,396 mm
Specification: DN6;2SN-4;40Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6

8U-0350

Installation route: 过渡接头(回转接头左)~过渡接头(分配阀左前)

Length: 495 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

8U-0682

Installation route: 大臂铁管~小臂阀块

Length: 1,350 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 2

8U-1882

Installation route: 大臂~过渡阀块(小臂侧)

Length: 1,400 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 8

8U-2679

Installation route: 铲斗倾斜油缸管路

Length: 708 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

8U-1887

Installation route: 大臂铁管~快速断开连接器(小臂)

Length: 2,200 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 5

8U-0895

Installation route: 小臂支撑块~阀块(小臂)

Length: 1,196 mm
Specification: DN25;4SP-16;28Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 1

8U-0682

Installation route: 大臂铁管~快速断开连接器(小臂)

Length: 1,350 mm
Specification: DN13;6SH-8;42Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
