Individual hose record

159213A1 Hose Repair Specifications

Excavator · Case · CX210B SL · Control Lever

Finished length1,150 mm

Locate this hose

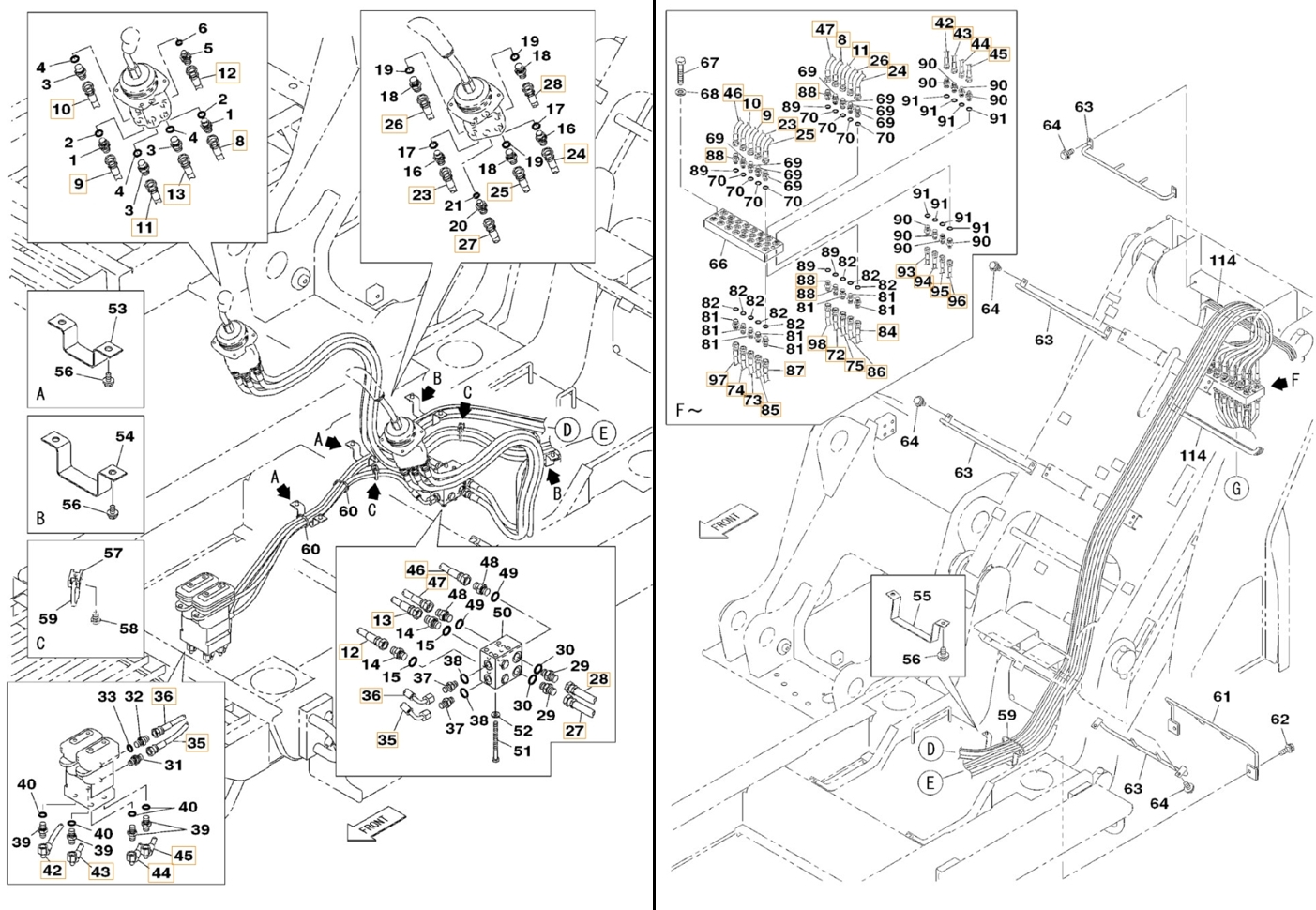

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 159213A1 before removing the hose.

Case CX210B SL installation diagram showing hydraulic hose 159213A1 at Pipe No. 12 — **Case CX210B SL**Part 159213A1 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 159213A1
Diagram pipe number: 12
Installation route: 右手柄~进回油阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,150 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 144

KHJ11570

Installation route: 后中转接头~分配阀前

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 176

KHJ15490

Installation route: 后中转接头~分配阀后

Length: 1,350 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 180

KHJ11580

Installation route: 后中转接头~分配阀后

Length: 1,350 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 142

KHJ2318

Installation route: 后中转接头~分配阀前

Length: 1,400 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 177

KHJ13670

Installation route: 前中转接头~分配阀后

Length: 1,950 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 128

KHJ2292

Installation route: 后中转接头~缓冲阀

Length: 280 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 179

KHJ11600

Installation route: 后中转接头~分配阀后

Length: 1,350 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 209

KHJ1264

Installation route: 前中转接头~接头(进回油阀)

Length: 800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
