6A-7720 Hose Repair Specifications

Excavator · Caterpillar · CAT®215 · Boom Assembly

Finished length945 mm

Locate this hose

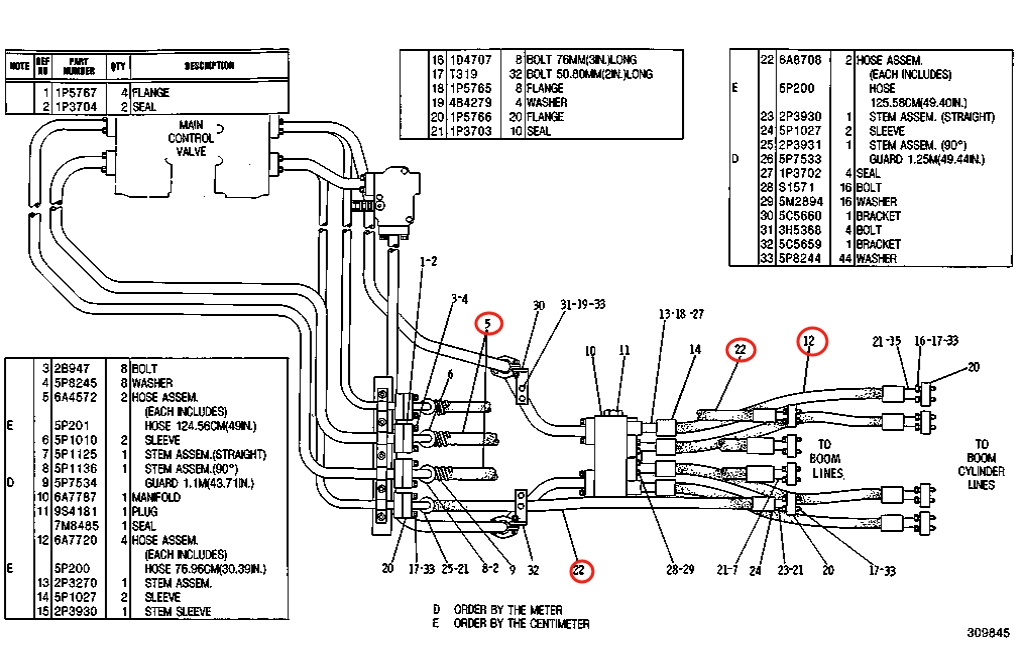

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 6A-7720 before removing the hose.

Caterpillar CAT®215 installation diagram showing hydraulic hose 6A-7720 at Pipe No. 12 — Caterpillar CAT®215Part 6A-7720 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 6A-7720
Diagram pipe number: 12
Installation route: 大臂油缸左1/左2/左3/左4
Hose specification: DN19;4SP-12;35Mpa
Finished length: 945 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 4

For reference only. Confirm the actual hose before fabrication.
