Individual hose record
4203102 Hose Repair Specifications
Excavator · Hitachi · EX270LC · Hydraulic Pump
Finished length550 mm
Locate this hose

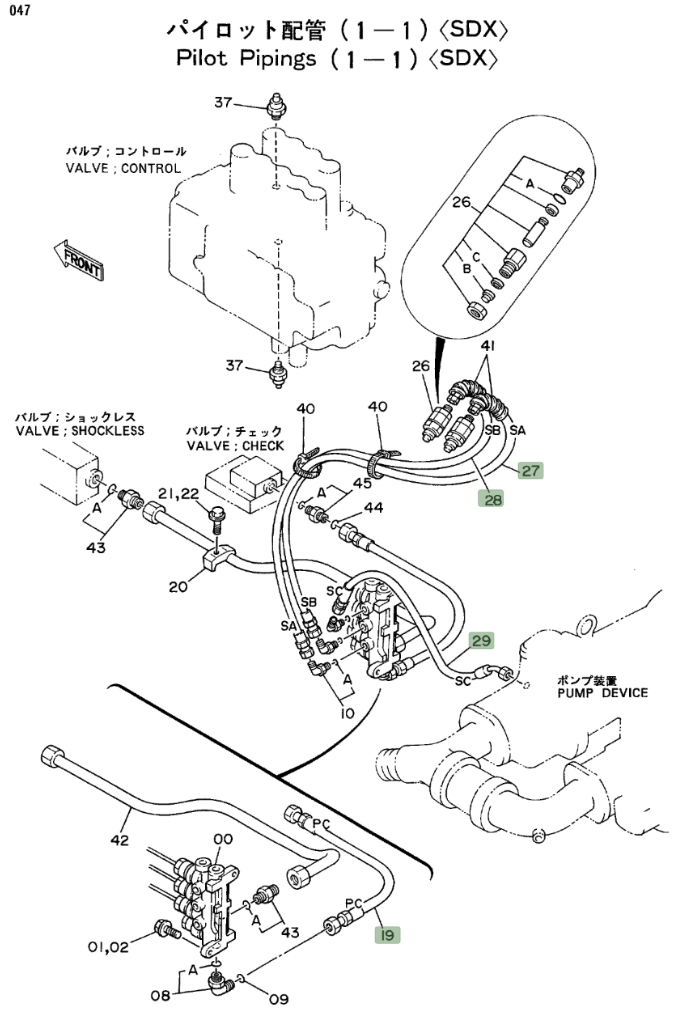

Installation diagram — Pipe No. 29
Locate Pipe No. 29 in the diagram, then confirm part number 4203102 before removing the hose.
Repair specifications
- Part number
- 4203102
- Diagram pipe number
- 29
- Installation route
- 液压泵~电磁阀
- Hose specification
- DN6;1SN-04;7MPa
- Finished length
- 550 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
