134-9137 Hose Repair Specifications

Excavator · Caterpillar · CAT®318D2 · Grease Lines

Finished length3,050 mm

Locate this hose

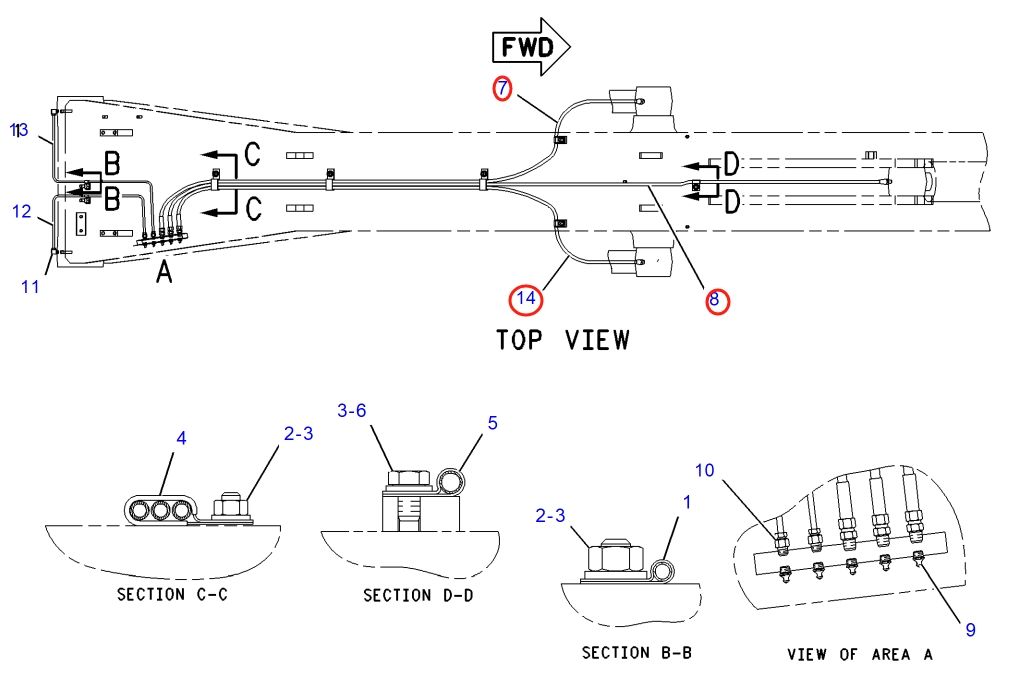

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 134-9137 before removing the hose.

Caterpillar CAT®318D2 installation diagram showing hydraulic hose 134-9137 at Pipe No. 8 — Caterpillar CAT®318D2Part 134-9137 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 134-9137
Diagram pipe number: 8
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-4;10.4Mpa
Finished length: 3,050 mm
Working pressure: 10.4 MPa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 14

120-7225

Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管

Length: 2,300 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹

View full repair specifications

Diagram Pipe No. 7

123-5349

Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管

Length: 2,400 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
