Individual hose record
455-3506 Hose Repair Specifications
Excavator · Caterpillar · CAT®313F L · Attachments – Lock Valve
Finished length4,350 mm
Locate this hose

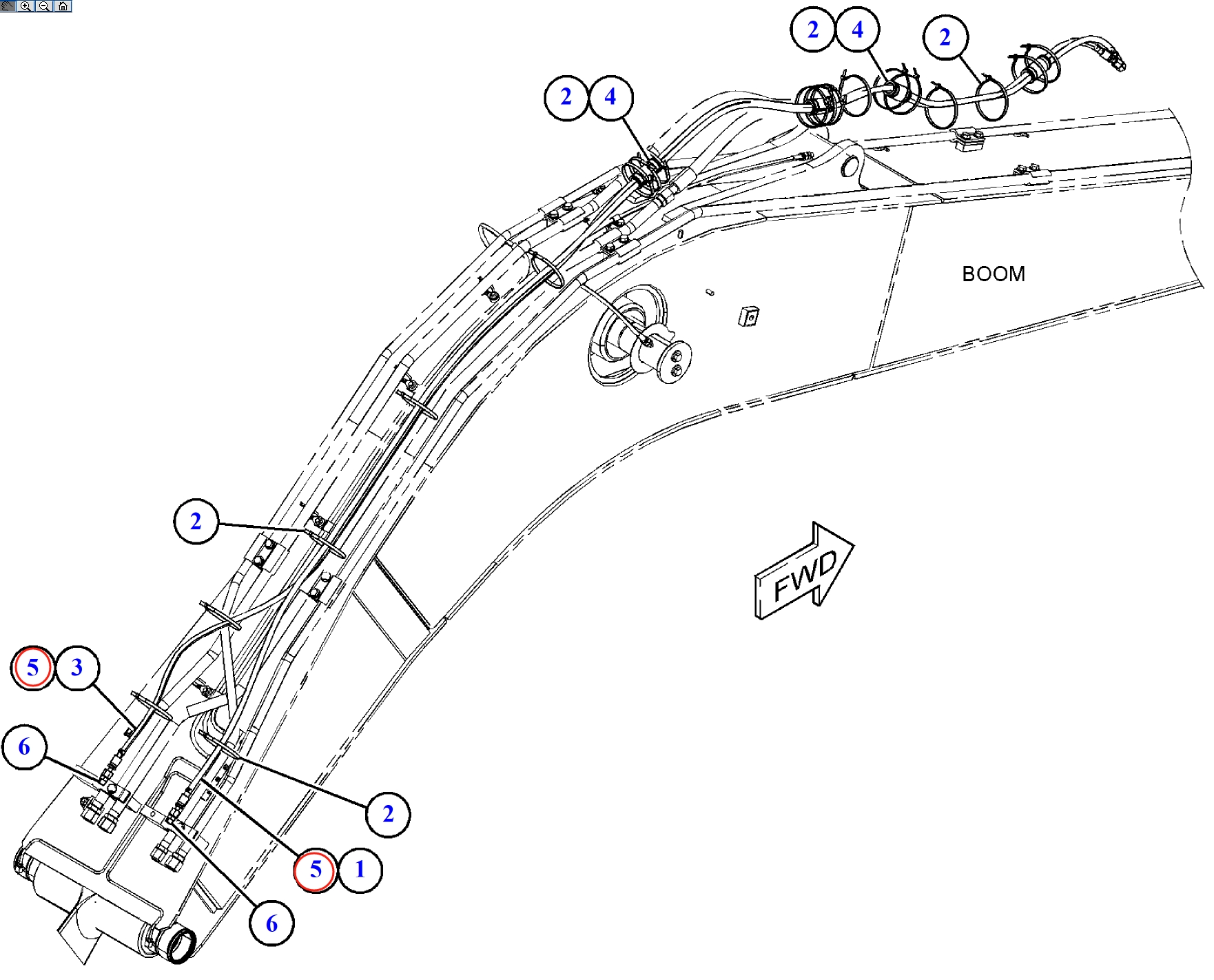

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 455-3506 before removing the hose.
Repair specifications
- Part number
- 455-3506
- Diagram pipe number
- 5
- Installation route
- 小臂油缸锁止阀~大臂(后段)
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 4,350 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
