Individual hose record

4649408 Hose Repair Specifications

Excavator · Hitachi · ZX345USLC-6N · Boom Assembly

Finished length1,150 mm

Locate this hose

Installation diagram — Pipe No. 6

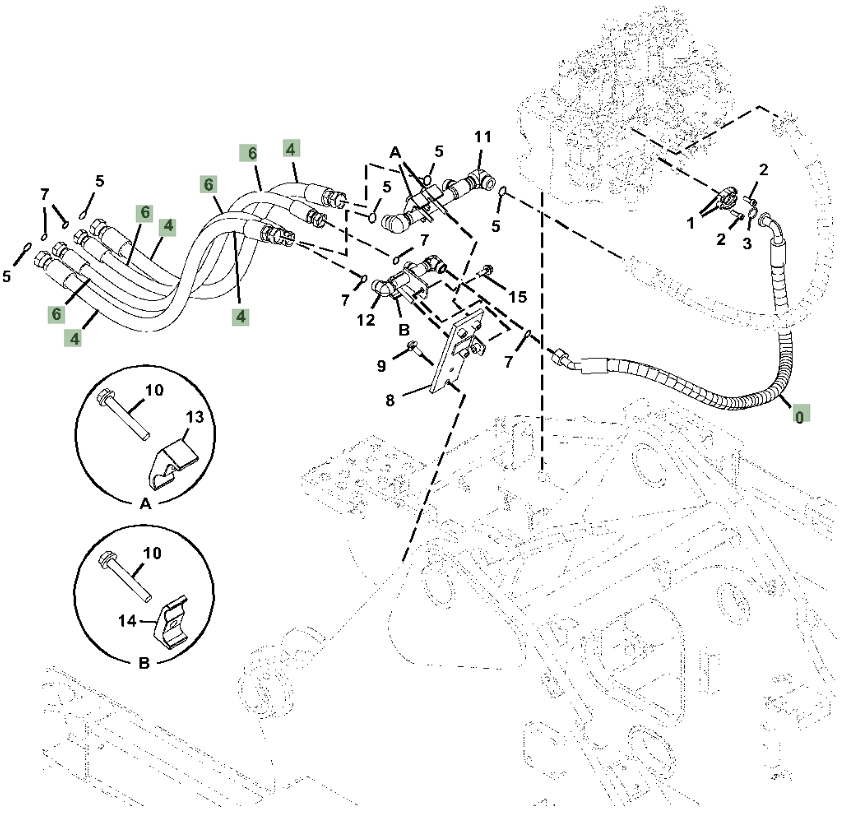

Locate Pipe No. 6 in the diagram, then confirm part number 4649408 before removing the hose.

Hitachi ZX345USLC-6N installation diagram showing hydraulic hose 4649408 at Pipe No. 6 — **Hitachi ZX345USLC-6N**Part 4649408 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 4649408
Diagram pipe number: 6
Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3
Hose specification: DN19;4SP-12;34.5Mpa
Finished length: 1,150 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2
