3V-4332 Hose Repair Specifications

Excavator · Caterpillar · CAT®231D · Control Valve

Finished length610 mm

Locate this hose

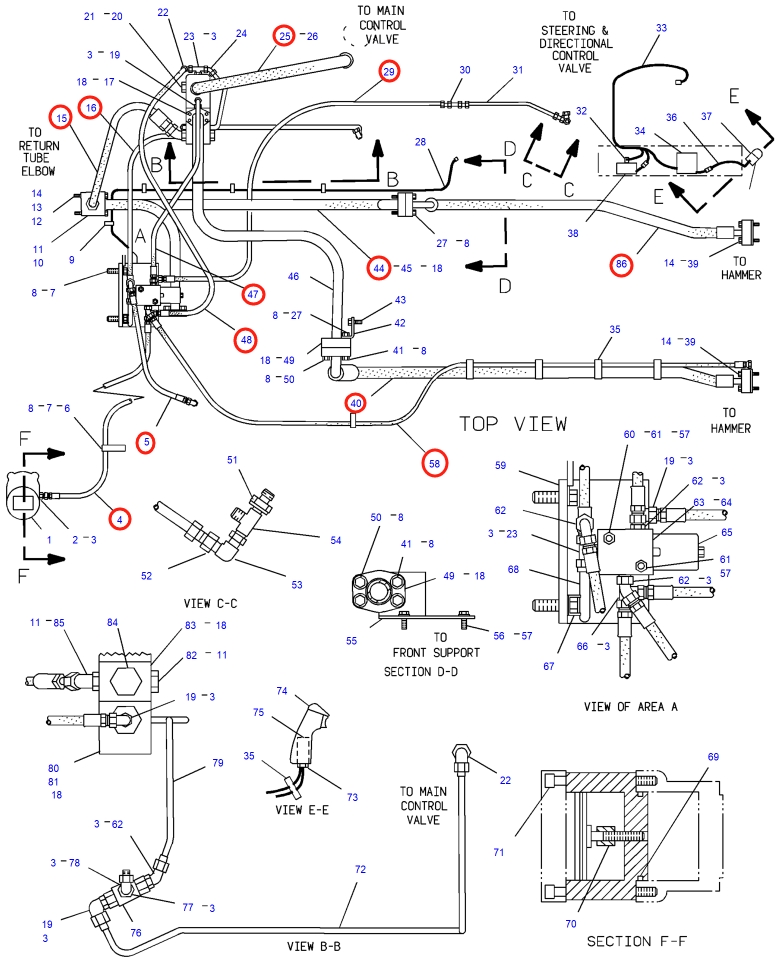

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 3V-4332 before removing the hose.

Caterpillar CAT®231D installation diagram showing hydraulic hose 3V-4332 at Pipe No. 15 — Caterpillar CAT®231DPart 3V-4332 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 3V-4332
Diagram pipe number: 15
Installation route: 回油铁管(分配阀)~安全阀(分配阀后)
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 610 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 11

8K-3220

Installation route: 分配阀上(4阀芯)~分配阀(3阀芯)

Length: 1,330 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 12

8K-3219

Installation route: 分配阀上(4阀芯)~分配阀(3阀芯)

Length: 1,310 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
