Individual hose record
177-8407 Hose Repair Specifications
Excavator · Caterpillar · CAT®315C · Attachments – Quick Coupler
Finished length1,540 mm
Locate this hose

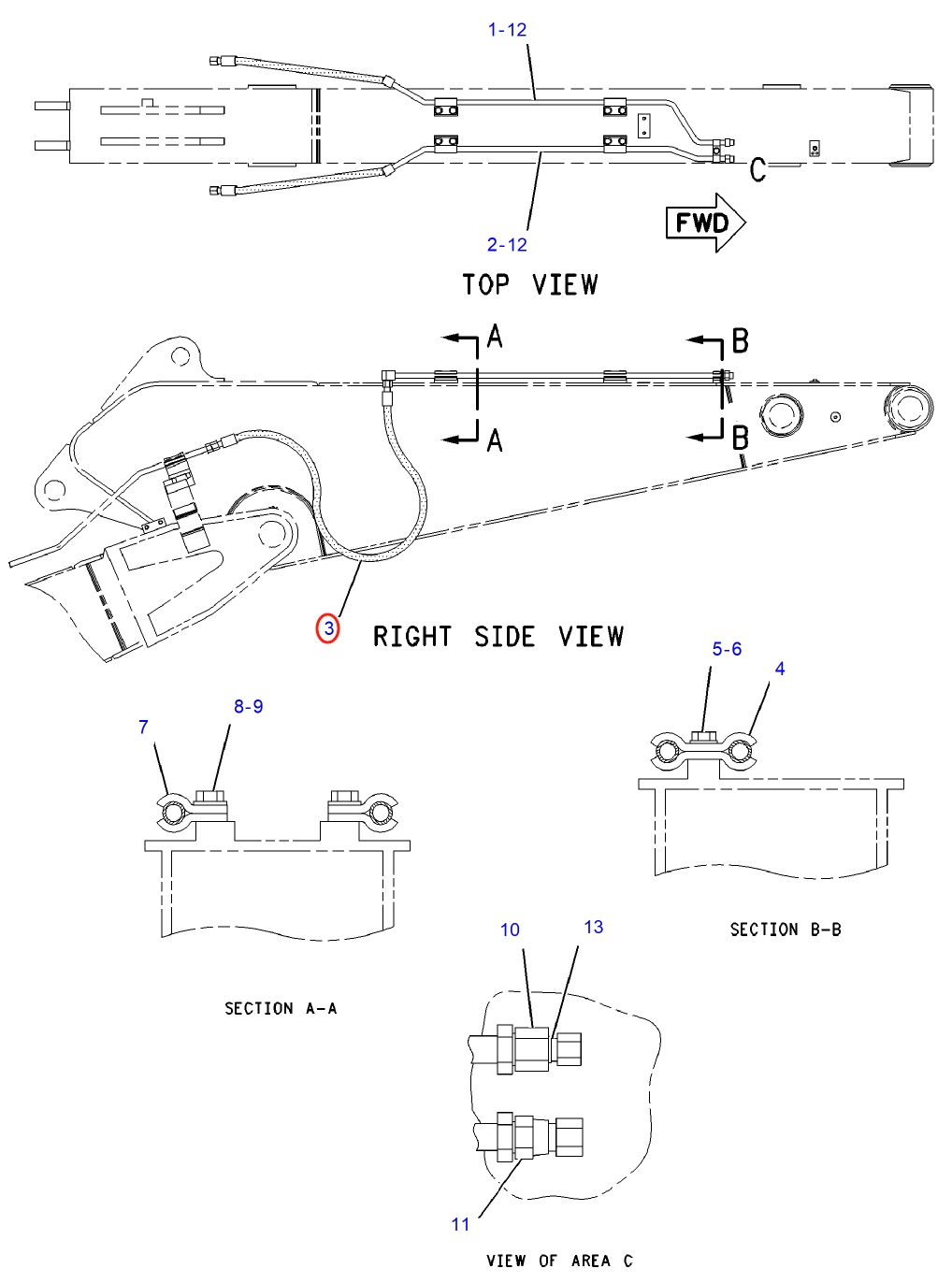

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 177-8407 before removing the hose.
Repair specifications
- Part number
- 177-8407
- Diagram pipe number
- 3
- Installation route
- 大臂(快换)~小臂(快换)
- Hose specification
- DN13;6SH-8;42Mpa
- Finished length
- 1,540 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
