Individual hose record
8U-0504 Hose Repair Specifications
Excavator · Caterpillar · CAT®214B FT · Boom Assembly
Finished length4,500 mm
Locate this hose

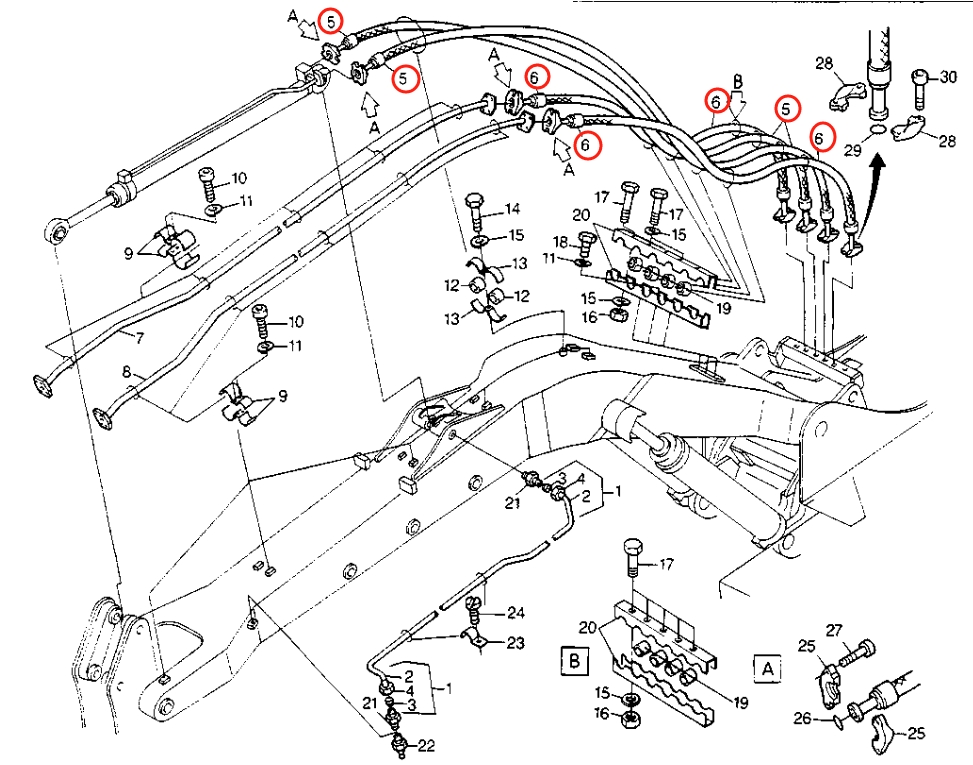

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 8U-0504 before removing the hose.
Repair specifications
- Part number
- 8U-0504
- Diagram pipe number
- 5
- Installation route
- 小臂油缸(规格1)
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 4,500 mm
- Working pressure
- 35 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 2
Same system
Related Hoses
- Length
- 4,350 mm
- Specification
- DN19;4SP-12;35Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 6,296 mm
- Specification
- DN8;-5;17.5Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,400 mm
- Specification
- DN19;4SP-12;35Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 6,146 mm
- Specification
- DN8;-5;17.5Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
For reference only. Confirm the actual hose before fabrication.
