Individual hose record
8K-3077 Hose Repair Specifications
Excavator · Caterpillar · CAT®225 · Boom Assembly
Finished length1,475 mm
Locate this hose

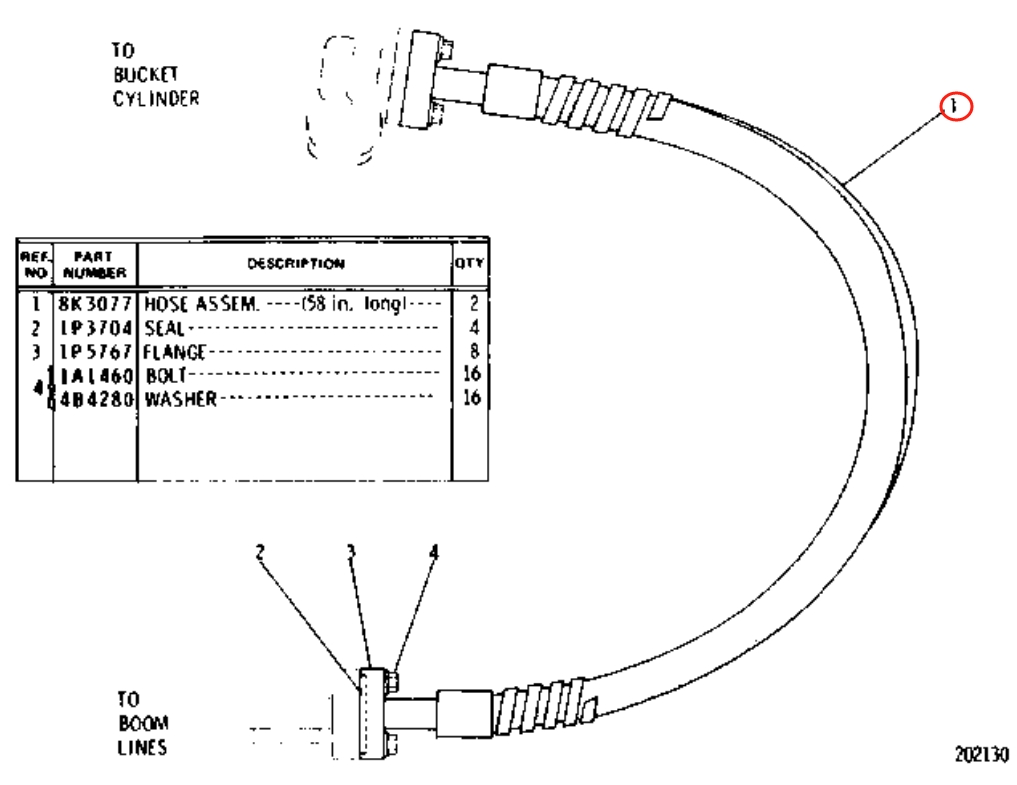

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 8K-3077 before removing the hose.
Repair specifications
- Part number
- 8K-3077
- Diagram pipe number
- 1
- Installation route
- Bucket cylinderOriginal Chinese: 铲斗油缸
- Hose specification
- DN25;4SP-16;35Mpa
- Finished length
- 1,475 mm
- Working pressure
- 35 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 2
Optional cross-check
Ask an AI search tool to check this repair data
The question is already written for this machine or hose. Use a tool with web search enabled; treat its answer as a starting point and verify on the machine.
See the exact question being sent
I am checking hydraulic hose repair information for "8K-3077 Hose Repair Specifications". Use web search and cite a source for every factual point. Compare this HoseSeek page with manufacturer manuals and reliable parts documentation: https://www.hoseseek.com/hoses/hose_ab898cf53e889bd33d116cce/ HoseSeek currently shows: part number: 8K-3077; diagram pipe number: 1; installation route: Bucket cylinder; hose specification: DN25;4SP-16;35Mpa; finished length in millimetres: 1475; left fitting: Heavy-series flange; right fitting: Heavy-series flange. Verify, where applicable: 1. Exact machine model and any serial-number range. 2. Hydraulic system and installation route. 3. Hose part number and diagram pipe number. 4. Finished length, hose specification, and pressure rating. 5. Both end fittings, including thread, sealing seat, size, and angle. 6. Installation-diagram position and routing. State explicitly what you could not verify. Do not infer a missing dimension or fitting. End with a short on-machine checklist for a hose repair technician.
For reference only. Confirm the actual hose before fabrication.
