Individual hose record
DS2093200 Hose Repair Specifications
Excavator · Doosan · DX160LC · Attachments – Breaker
Finished length520 mm
Locate this hose

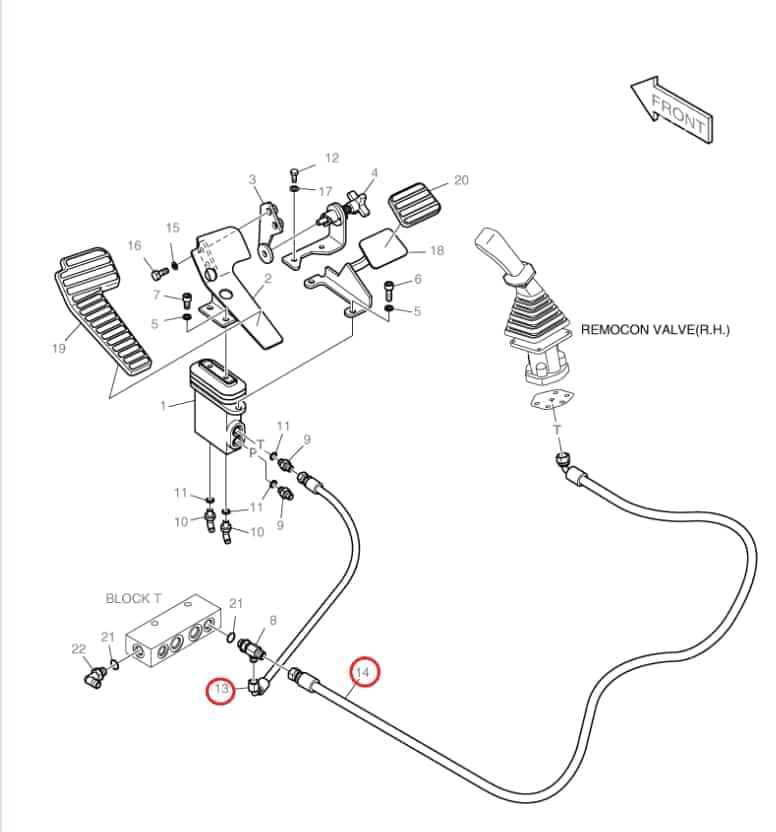

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number DS2093200 before removing the hose.
Repair specifications
- Part number
- DS2093200
- Diagram pipe number
- 13
- Installation route
- Breaker pedal port T → return valveOriginal Chinese: 破碎器踏板T口~回油阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 520 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
