9D-5861 Hose Repair Specifications

Excavator · Caterpillar · CAT®215B · Attachments

Finished length1,077 mm

Locate this hose

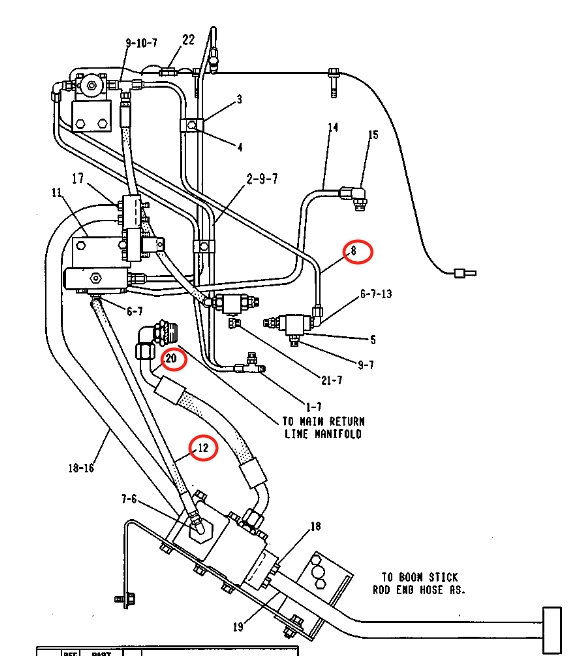

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 9D-5861 before removing the hose.

Caterpillar CAT®215B installation diagram showing hydraulic hose 9D-5861 at Pipe No. 12 — Caterpillar CAT®215BPart 9D-5861 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 9D-5861
Diagram pipe number: 12
Installation route: 控制阀~过渡阀块
Hose specification: DN10;4SP-6;28Mpa
Finished length: 1,077 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 16

3V-1330

Installation route: 过渡阀块(分配阀前)~

Length: 686 mm
Specification: DN8;-5;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 8

6W-7640

Installation route: 过渡接头(大臂上)~回油铁管

Length: 1,400 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
