Individual hose record

3V-7516 Hose Repair Specifications

Excavator · Caterpillar · CAT®225D · Grease Lines

Finished length762 mm

Locate this hose

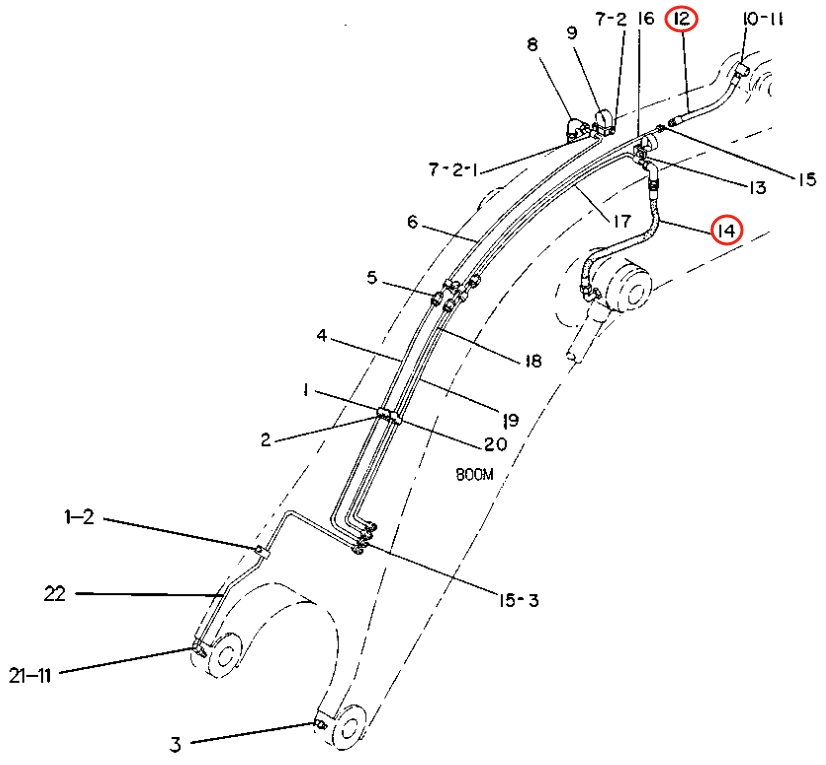

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 3V-7516 before removing the hose.

Caterpillar CAT®225D installation diagram showing hydraulic hose 3V-7516 at Pipe No. 14 — Caterpillar CAT®225DPart 3V-7516 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 3V-7516
Diagram pipe number: 14
Installation route: 大臂油缸黄油管
Hose specification: DN5;-3;21Mpa
Finished length: 762 mm
Working pressure: 21 MPa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹
Quantity: 2

For reference only. Confirm the actual hose before fabrication.
