Individual hose record
8U-5756 Hose Repair Specifications
Excavator · Caterpillar · CAT®211B · Swivel Joint
Finished length1,547 mm
Locate this hose

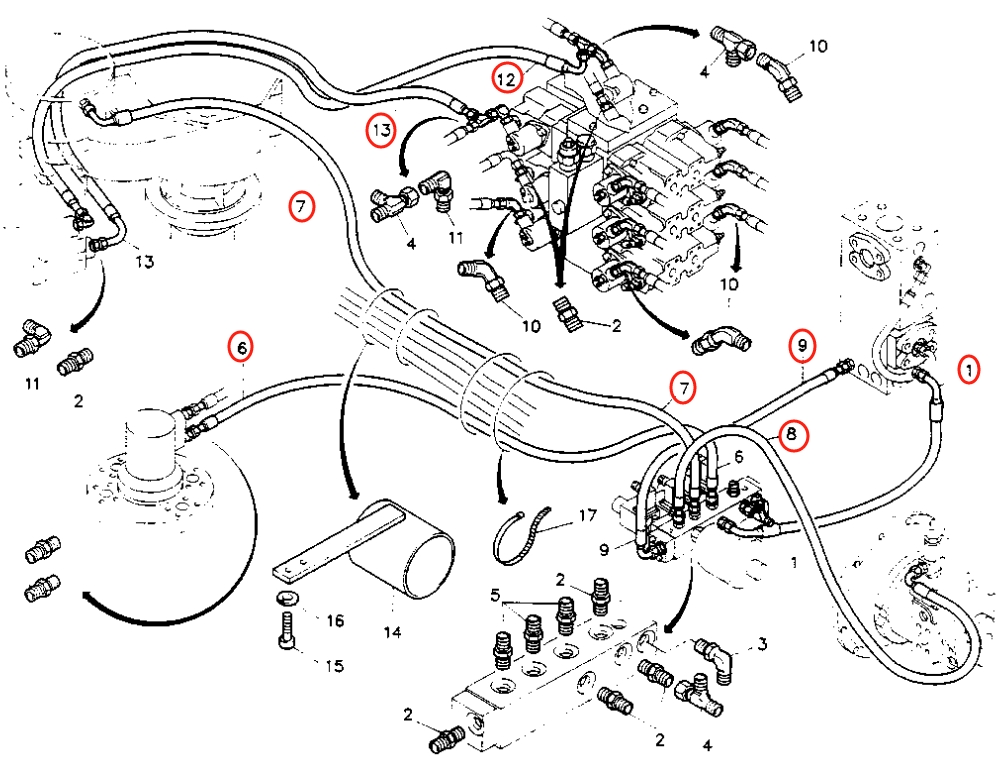

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 8U-5756 before removing the hose.
Repair specifications
- Part number
- 8U-5756
- Diagram pipe number
- 6
- Installation route
- 回转接头~电磁阀
- Hose specification
- DN8;-5;17.5Mpa
- Finished length
- 1,547 mm
- Working pressure
- 17.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
