5I-4487 Hose Repair Specifications

Excavator · Caterpillar · CAT®317 N · Solenoid Valve

Finished length1,350 mm

Locate this hose

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 5I-4487 before removing the hose.

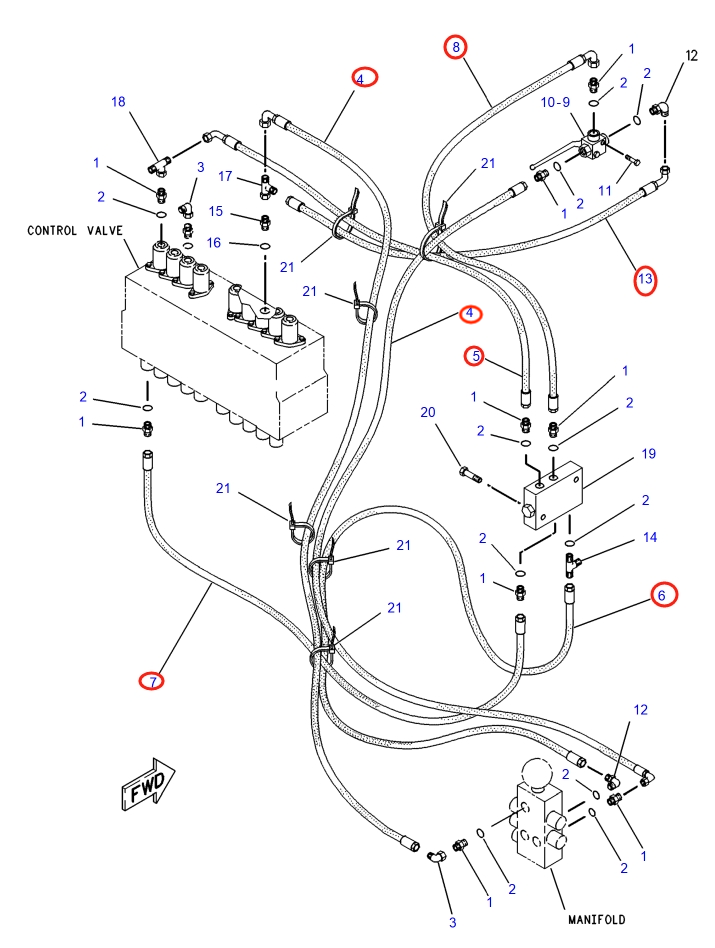

Caterpillar CAT®317 N installation diagram showing hydraulic hose 5I-4487 at Pipe No. 6 — Caterpillar CAT®317 NPart 5I-4487 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 5I-4487
Diagram pipe number: 6
Installation route: 蓄能器电磁阀~先导阀(分配阀右)
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,350 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1
