Individual hose record

4437070 Hose Repair Specifications

Excavator · Hitachi · ZX250F · Grease Lines

Finished length3,600 mm

Locate this hose

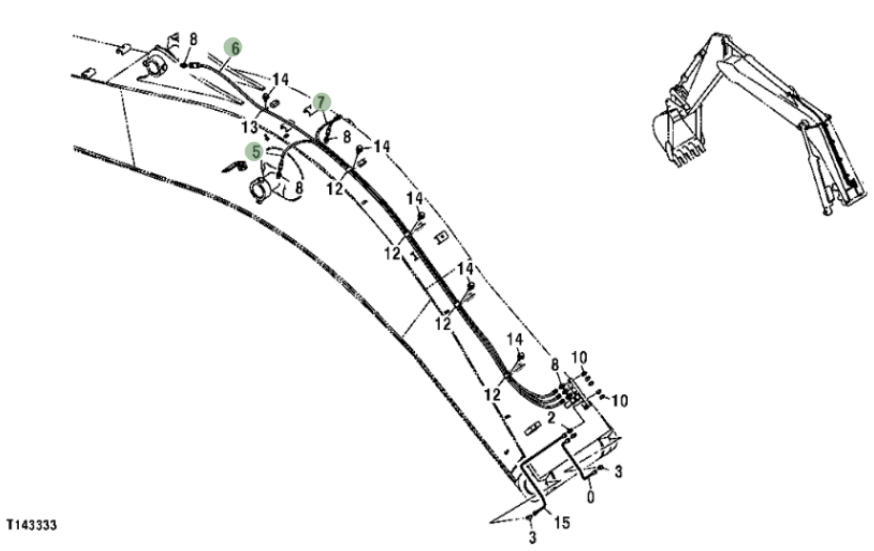

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 4437070 before removing the hose.

Hitachi ZX250F installation diagram showing hydraulic hose 4437070 at Pipe No. 6 — Hitachi ZX250FPart 4437070 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 4437070
Diagram pipe number: 6
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,600 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 7

4437072

Installation route: 大臂油缸黄油管

Length: 2,920 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 5

4437071

Installation route: 大臂油缸黄油管

Length: 3,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 2

4429280

Installation route: 右小臂油缸黄油管

Length: 2,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
