Diagram Pipe No. 13
4435310
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 2,900 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
4430973 Hose Repair Specifications
Excavator · Hitachi · ZX450LC · Swivel Joint
Finished length2,500 mm
Locate this hose

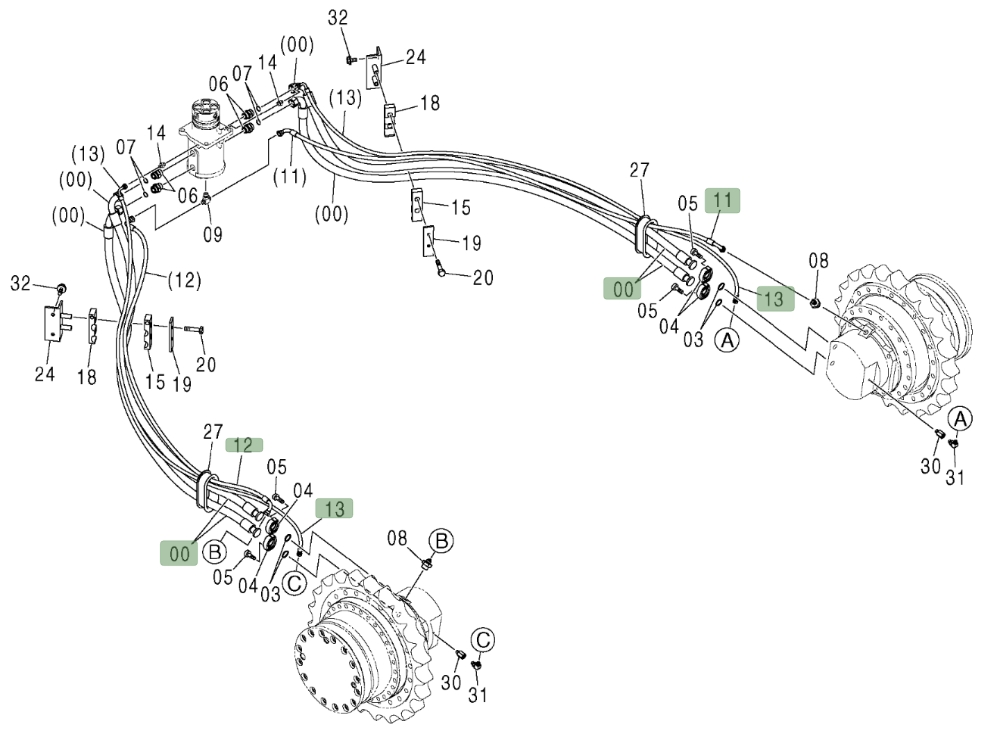

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 4430973 before removing the hose.
Repair specifications
- Part number
- 4430973
- Diagram pipe number
- 0
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN25;4SH-16;38.8MPa
- Finished length
- 2,500 mm
- Working pressure
- 38.8 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 4
Same system
Related Hoses
- Length
- 2,000 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 1,450 mm
- Specification
- DN25;4SH-16;38.8MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
Diagram Pipe No. 24
4295191
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 3,120 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 2,100 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 1,550 mm
- Specification
- DN25;4SH-16;38.8MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
- Length
- 2,100 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Optional cross-check
Ask an AI search tool to check this repair data
The question is already written for this machine or hose. Use a tool with web search enabled; treat its answer as a starting point and verify on the machine.
See the exact question being sent
I am checking hydraulic hose repair information for "4430973 Hose Repair Specifications". Use web search and cite a source for every factual point. Compare this HoseSeek page with manufacturer manuals and reliable parts documentation: https://www.hoseseek.com/hoses/hose_b1540fc4939426d5a8b919b0/ HoseSeek currently shows: part number: 4430973; diagram pipe number: 0; installation route: Swivel joint → travel motor; hose specification: DN25;4SH-16;38.8MPa; finished length in millimetres: 2500; left fitting: Heavy-series flange; right fitting: 90° elbow, American female thread, flat-face seal. Verify, where applicable: 1. Exact machine model and any serial-number range. 2. Hydraulic system and installation route. 3. Hose part number and diagram pipe number. 4. Finished length, hose specification, and pressure rating. 5. Both end fittings, including thread, sealing seat, size, and angle. 6. Installation-diagram position and routing. State explicitly what you could not verify. Do not infer a missing dimension or fitting. End with a short on-machine checklist for a hose repair technician.
For reference only. Confirm the actual hose before fabrication.
