2V-8571 Hose Repair Specifications

Excavator · Caterpillar · CAT®225B · Swing Motor

Finished length651 mm

Locate this hose

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 2V-8571 before removing the hose.

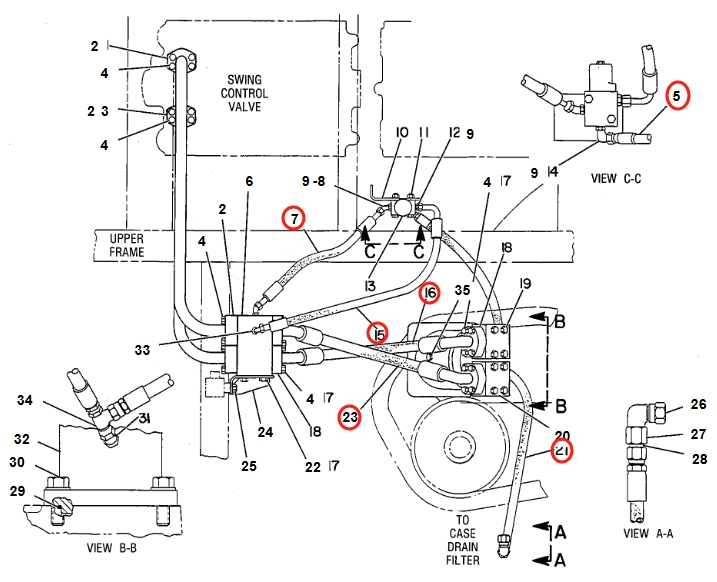

Caterpillar CAT®225B installation diagram showing hydraulic hose 2V-8571 at Pipe No. 5 — Caterpillar CAT®225BPart 2V-8571 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 2V-8571
Diagram pipe number: 5
Installation route: 回转马达~回油滤芯
Hose specification: DN13;1SN-8;14Mpa
Finished length: 651 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 21

2V-8571

Installation route: 回转马达~电磁阀(分配阀右下)

Length: 651 mm
Specification: DN13;1SN-8;14Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
