Individual hose record
DS2093309 Hose Repair Specifications
Excavator · Doosan · DX27Z · Boom Assembly
Finished length1,710 mm
Locate this hose

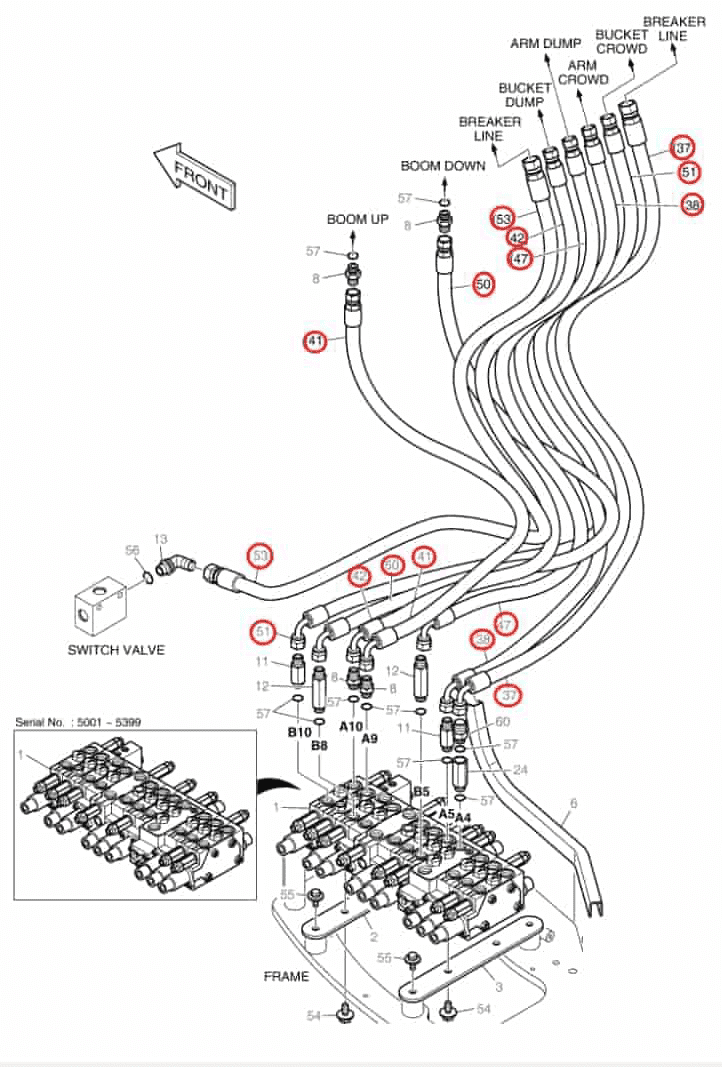

Installation diagram — Pipe No. 42
Locate Pipe No. 42 in the diagram, then confirm part number DS2093309 before removing the hose.
Repair specifications
- Part number
- DS2093309
- Diagram pipe number
- 42
- Installation route
- 大臂左2~分配阀A10口
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,710 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
