Individual hose record

4628532 Hose Repair Specifications

Excavator · Hitachi · ZX130-5N · Boom Assembly

Finished length950 mm

Locate this hose

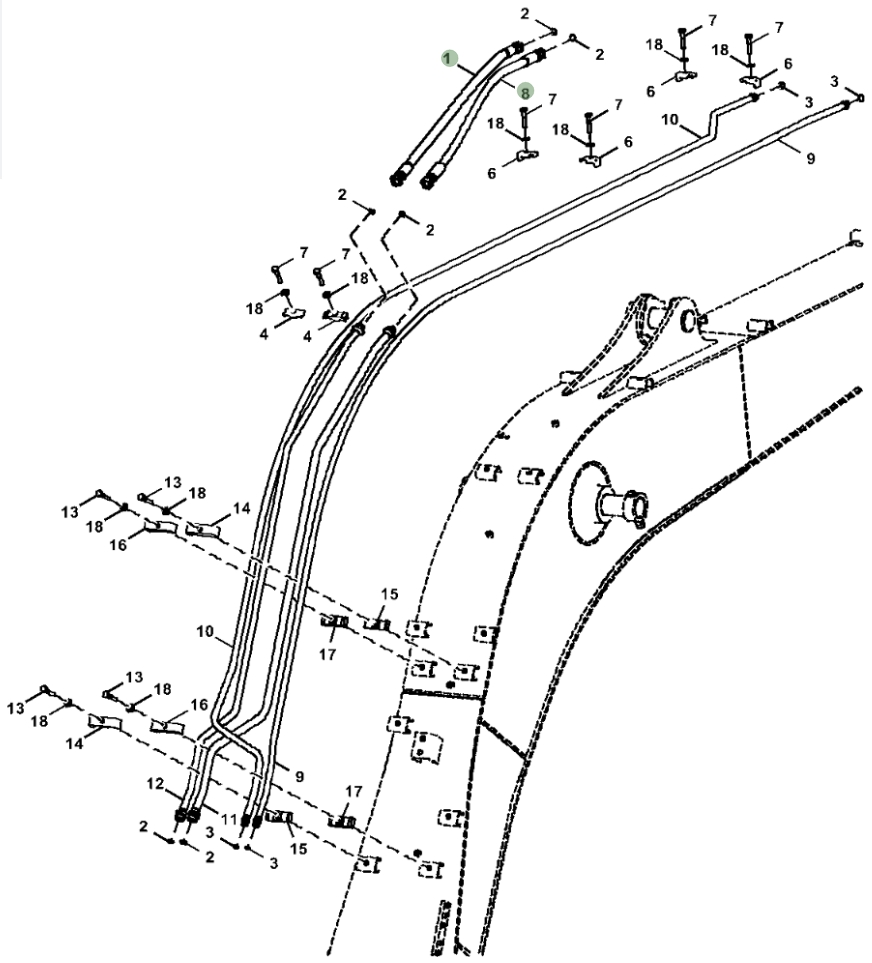

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4628532 before removing the hose.

Hitachi ZX130-5N installation diagram showing hydraulic hose 4628532 at Pipe No. 8 — **Hitachi ZX130-5N**Part 4628532 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4628532
Diagram pipe number: 8
Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右
Hose specification: DN19;4SH-12;42MPa
Finished length: 950 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
