Individual hose record

9D-5861 Hose Repair Specifications

Excavator · Caterpillar · CAT®215D · Control Valve

Finished length1,077 mm

Locate this hose

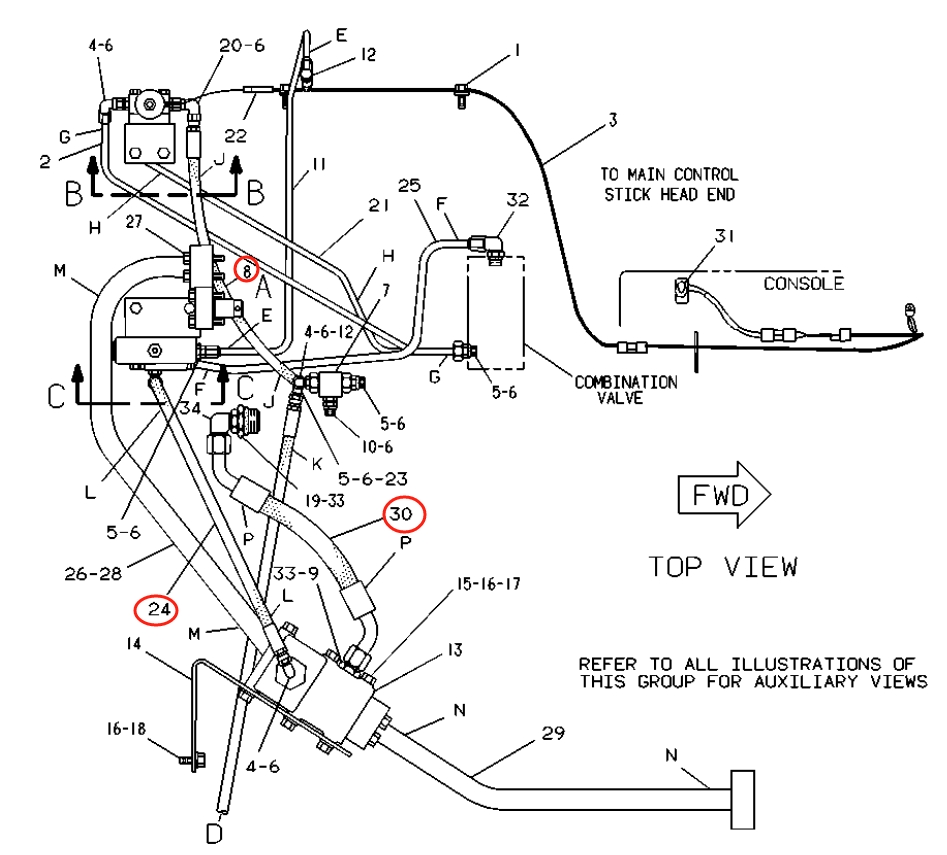

Installation diagram — Pipe No. 24

Locate Pipe No. 24 in the diagram, then confirm part number 9D-5861 before removing the hose.

Caterpillar CAT®215D installation diagram showing hydraulic hose 9D-5861 at Pipe No. 24 — Caterpillar CAT®215DPart 9D-5861 · Pipe No. 24Open full-size diagram

Repair specifications

Part number: 9D-5861
Diagram pipe number: 24
Installation route: 分配阀~过渡阀块
Hose specification: DN10;4SP-6;28Mpa
Finished length: 1,077 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1
