Individual hose record

2184-1196D65 Hose Repair Specifications

Excavator · Doosan · DX140LCR-3 · Boom Assembly

Finished length870 mm

Locate this hose

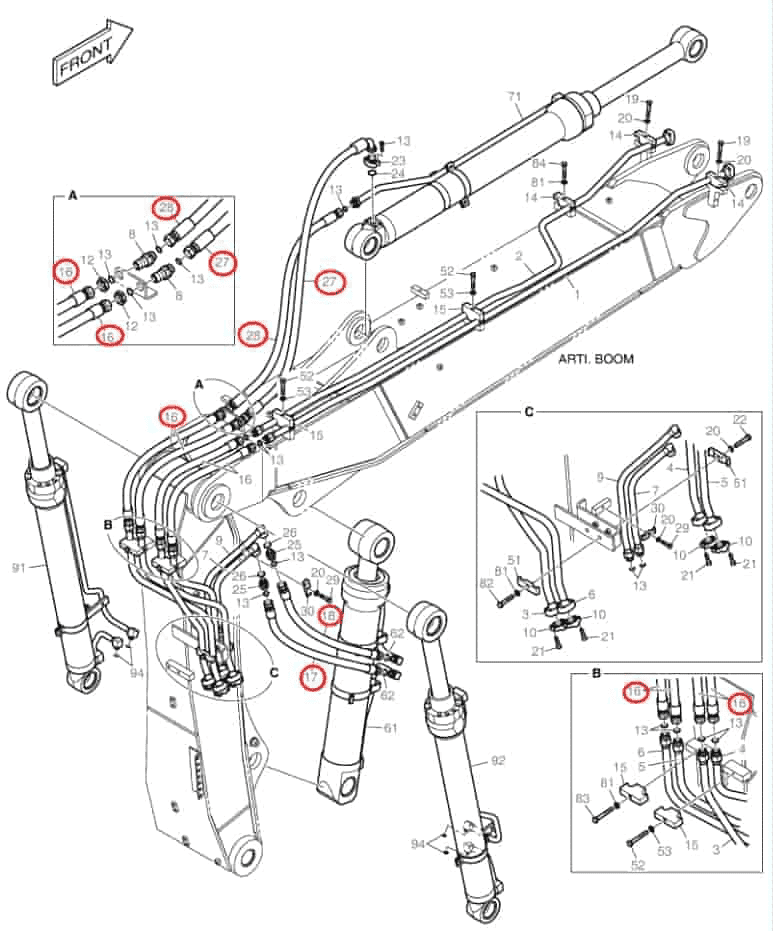

Installation diagram — Pipe No. 28

Locate Pipe No. 28 in the diagram, then confirm part number 2184-1196D65 before removing the hose.

Doosan DX140LCR-3 installation diagram showing hydraulic hose 2184-1196D65 at Pipe No. 28
Doosan DX140LCR-3Part 2184-1196D65 · Pipe No. 28Open full-size diagram

Repair specifications

Part number
2184-1196D65
Diagram pipe number
28
Installation route
Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification
-
Finished length
870 mm
Left fitting
Female threadOriginal Chinese: 内螺纹
Right fitting
Female threadOriginal Chinese: 内螺纹
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 8

DS2016252

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length
850 mm
Specification
DN19;4SH-12;42MPa
Left fitting
Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 7

DS2016251

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length
790 mm
Specification
DN19;4SH-12;42MPa
Left fitting
Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications
