Individual hose record

571-4180 Hose Repair Specifications

Excavator · Caterpillar · CAT®317 · Control Valve

Finished length580 mm

Locate this hose

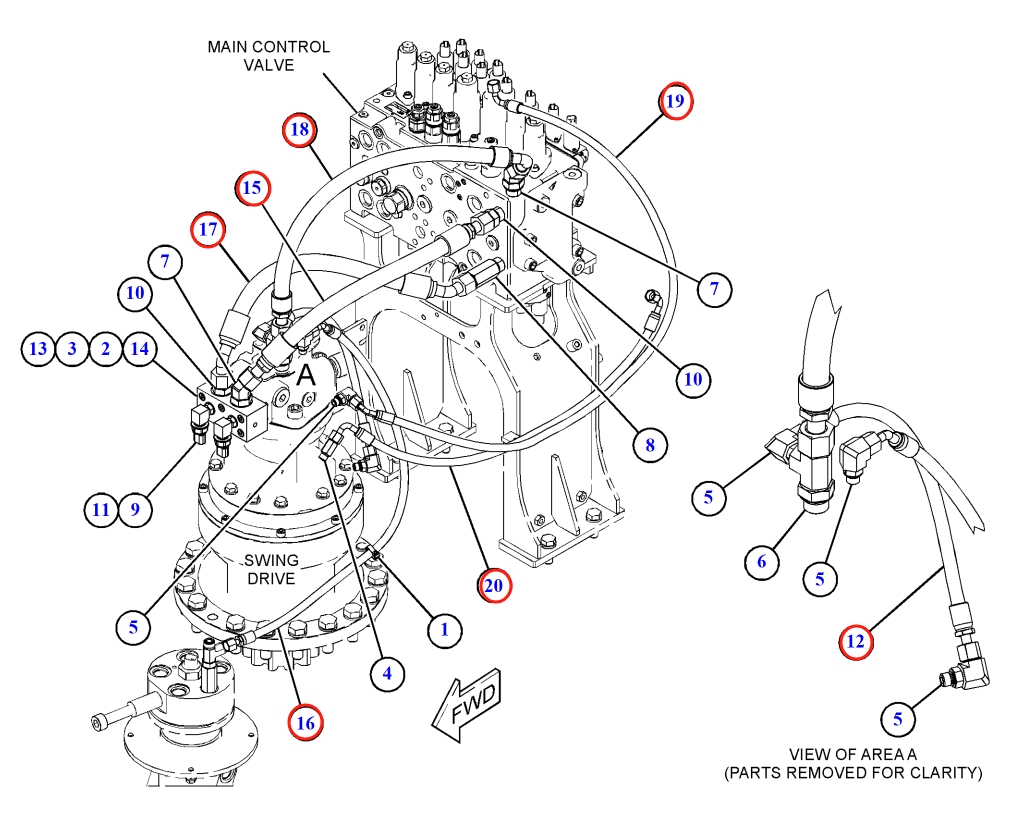

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 571-4180 before removing the hose.

Part number: 571-4180
Diagram pipe number: 15
Installation route: 分配阀前~回转马达
Hose specification: DN19;4SP-12;28Mpa
Finished length: 580 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 15

Installation route: 分配阀前~电磁阀(回转马达上)

Length: 580 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 30

Installation route: 分配阀后~控制阀(分配阀下)

Length: 1,300 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
