Individual hose record
595-0261 Hose Repair Specifications
Excavator · Caterpillar · CAT®317 · Swivel Joint
Finished length1,700 mm
Locate this hose

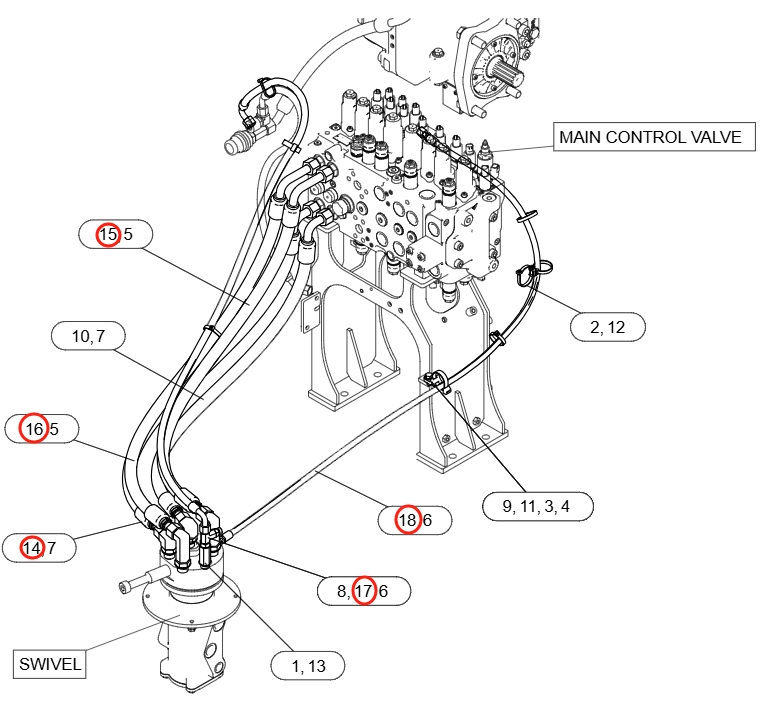

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 595-0261 before removing the hose.
Repair specifications
- Part number
- 595-0261
- Diagram pipe number
- 18
- Installation route
- 回转接头~分配阀上
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 1,700 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
