Individual hose record
8K-4790 Hose Repair Specifications
Excavator · Caterpillar · CAT®245 · Swivel Joint
Finished length1,665 mm
Locate this hose

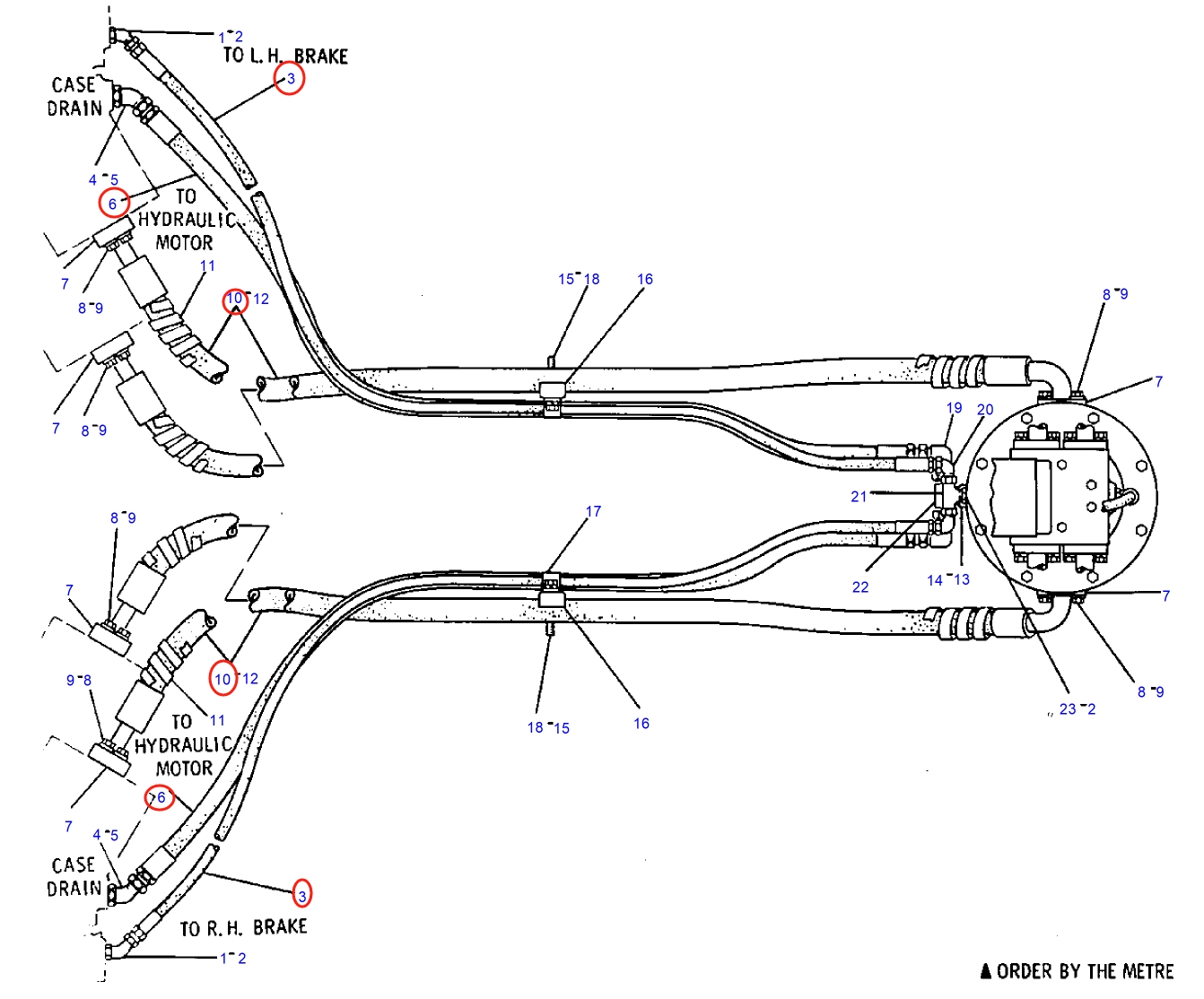

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 8K-4790 before removing the hose.
Repair specifications
- Part number
- 8K-4790
- Diagram pipe number
- 6
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN19;1SN-12;8.7Mpa
- Finished length
- 1,665 mm
- Working pressure
- 8.7 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
