Individual hose record
8U-7538 Hose Repair Specifications
Excavator · Caterpillar · CAT®205B · Attachments – Breaker
Finished length2,349 mm
Locate this hose

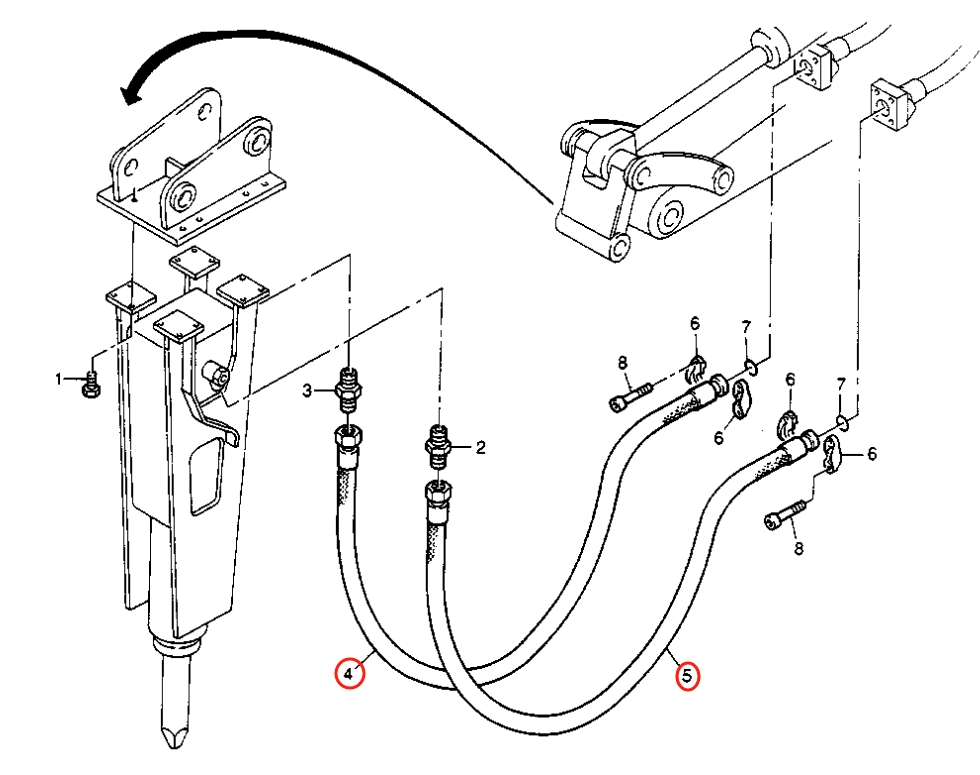

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 8U-7538 before removing the hose.
Repair specifications
- Part number
- 8U-7538
- Diagram pipe number
- 4
- Installation route
- 大臂(破碎器)~破碎器
- Hose specification
- DN25;4SP-16;28Mpa
- Finished length
- 2,349 mm
- Working pressure
- 28 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
