Individual hose record

390-4913 Hose Repair Specifications

Excavator · Caterpillar · CAT®M315F · Attachments

Finished length1,515 mm

Locate this hose

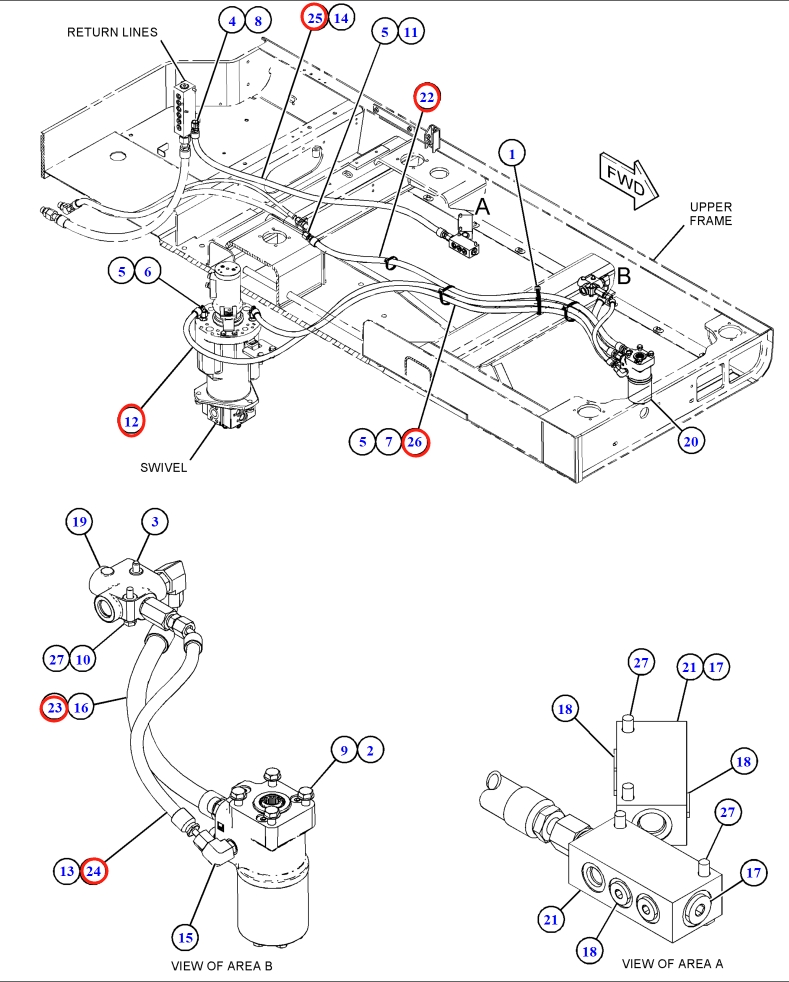

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number 390-4913 before removing the hose.

Caterpillar CAT®M315F installation diagram showing hydraulic hose 390-4913 at Pipe No. 22 — **Caterpillar CAT®M315F**Part 390-4913 · Pipe No. 22Open full-size diagram

Repair specifications

Part number: 390-4913
Diagram pipe number: 22
Installation route: 计量泵~
Hose specification: DN13;1SN-8;14Mpa
Finished length: 1,515 mm
Working pressure: 14 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 33

466-1189

Installation route: 大臂后段附加装置管

Length: 2,670 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

364-1644

Installation route: 大臂辅助管路

Length: 4,500 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 17

466-1192

Installation route: 大臂(前段)~大臂(后段)

Length: 4,850 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

464-4946

Installation route: 大臂(前段)~大臂(后段)

Length: 2,530 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

435-4128

Installation route: 大臂辅助管路

Length: 3,060 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

185-6791

Installation route: 大臂辅助管路

Length: 3,760 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

141-9888

Installation route: 风扇泵~液压油箱

Length: 2,080 mm
Specification: DN13;2SN-8;27.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 32

466-1188

Installation route: 大臂后段附加装置管

Length: 2,850 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
