Individual hose record

8K-3209 Hose Repair Specifications

Excavator · Caterpillar · CAT®229 · Boom Assembly

Finished length915 mm

Locate this hose

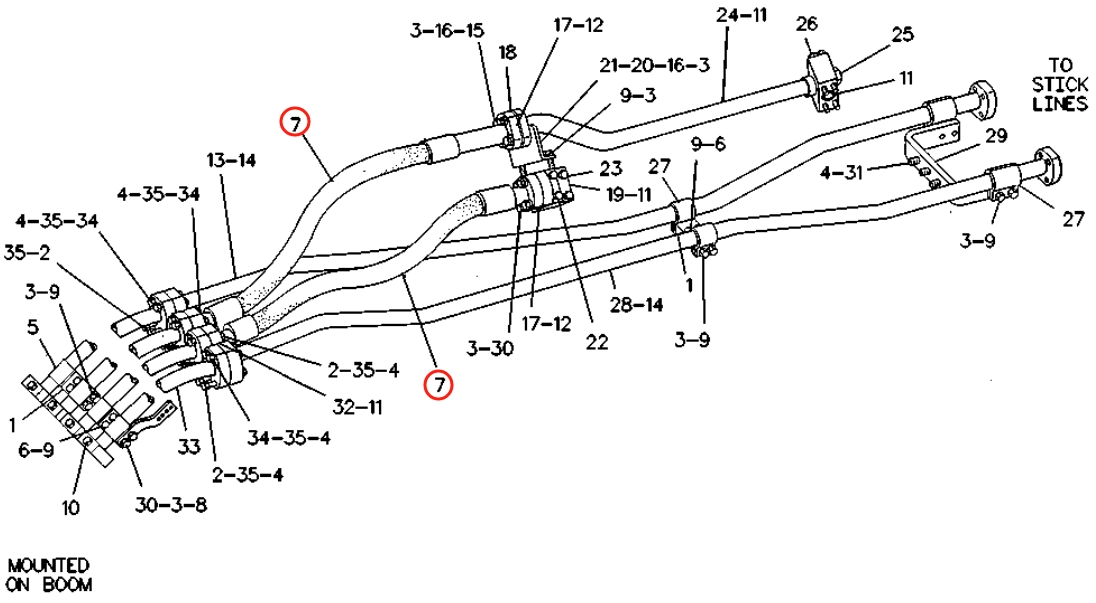

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 8K-3209 before removing the hose.

Caterpillar CAT®229 installation diagram showing hydraulic hose 8K-3209 at Pipe No. 7 — Caterpillar CAT®229Part 8K-3209 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 8K-3209
Diagram pipe number: 7
Installation route: 小臂油缸
Hose specification: DN32;4SP-20;35Mpa
Finished length: 915 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 11

8K-3077

Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸

Length: 1,475 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
