Individual hose record
8W-5425 Hose Repair Specifications
Excavator · Caterpillar · CAT®224B · Fuel Lines
Finished length1,255 mm
Locate this hose

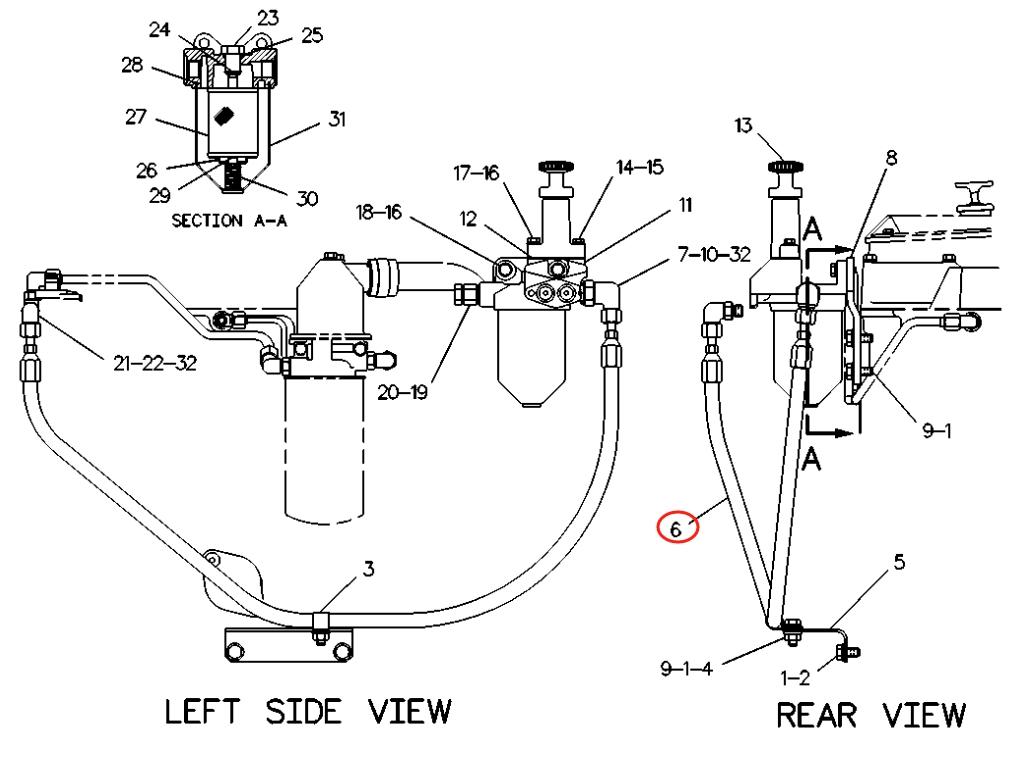

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 8W-5425 before removing the hose.
Repair specifications
- Part number
- 8W-5425
- Diagram pipe number
- 6
- Installation route
- 燃油泵~燃油过滤器
- Hose specification
- DN8;-5;10.3Mpa
- Finished length
- 1,255 mm
- Working pressure
- 10.3 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
