Individual hose record
4I-1410 Hose Repair Specifications
Excavator · Caterpillar · CAT®317-A N · Control Valve
Finished length1,590 mm
Locate this hose

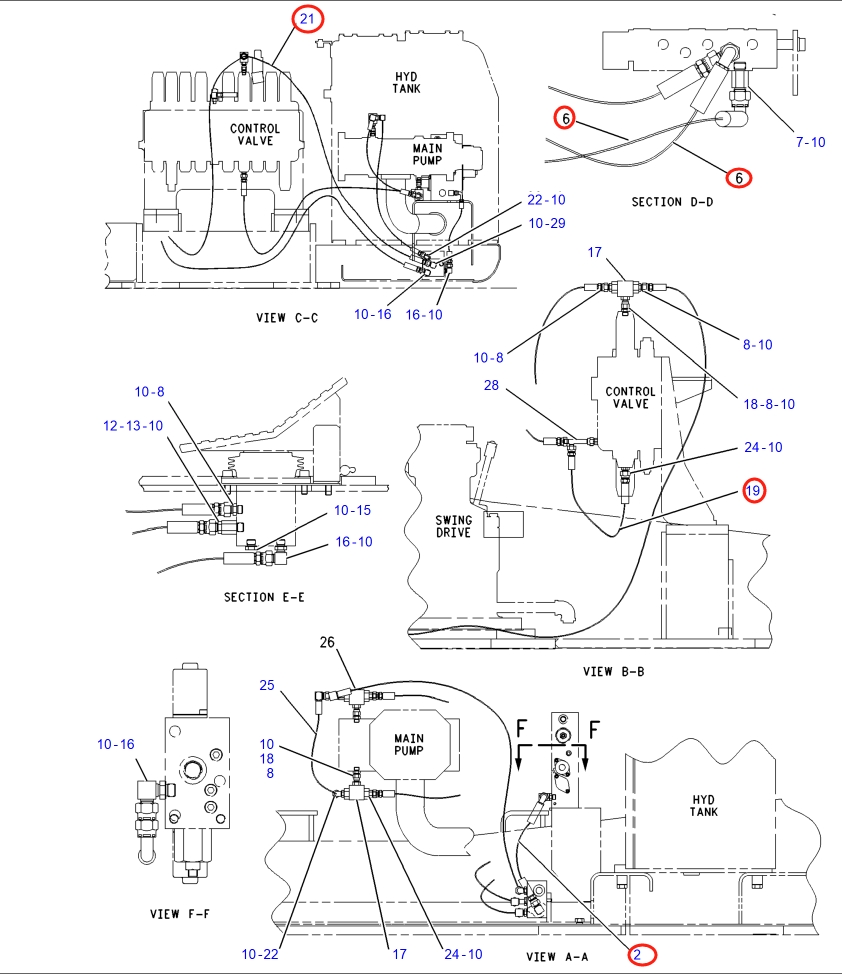

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4I-1410 before removing the hose.
Repair specifications
- Part number
- 4I-1410
- Diagram pipe number
- 21
- Installation route
- 分配阀上~过渡阀块(连接液压泵)
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 1,590 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
