Individual hose record
5T-4377 Hose Repair Specifications
Excavator · Caterpillar · CAT®317B L · Swivel Joint
Finished length2,000 mm
Locate this hose

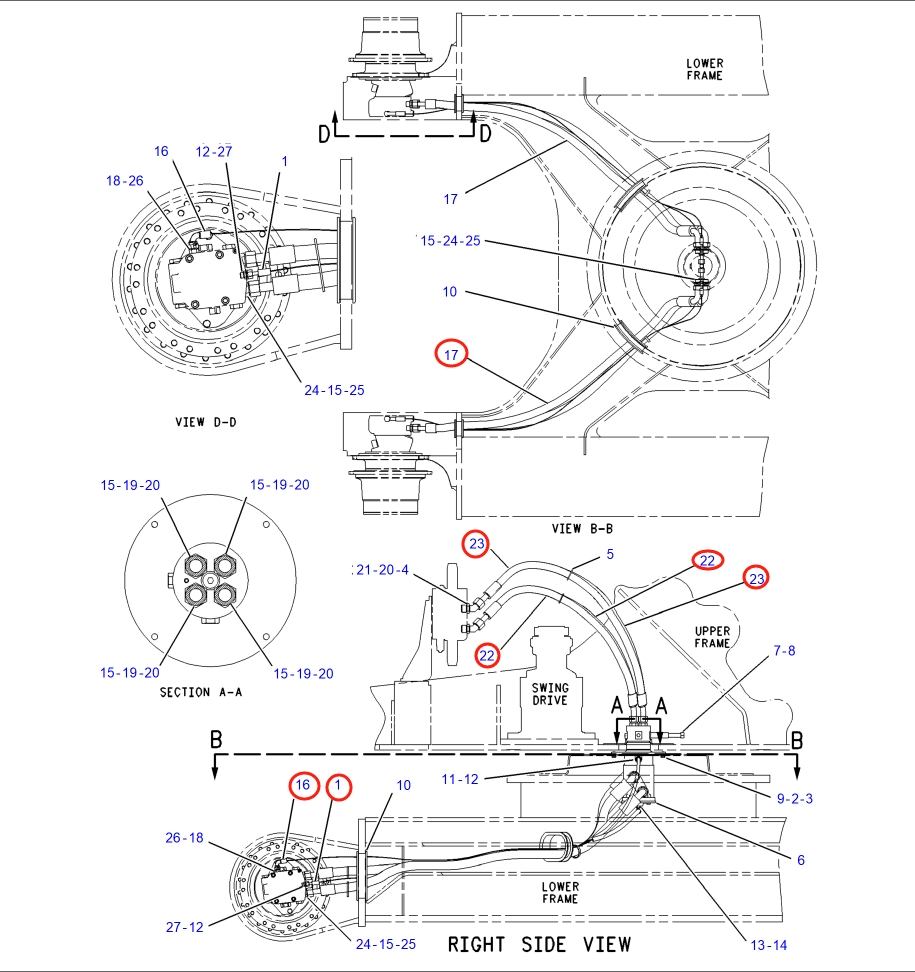

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 5T-4377 before removing the hose.
Repair specifications
- Part number
- 5T-4377
- Diagram pipe number
- 1
- Installation route
- 回转接头~行走马达(规格1)
- Hose specification
- DN6;1SN-4;19.2Mpa
- Finished length
- 2,000 mm
- Working pressure
- 19.2 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
