129-9141 Hose Repair Specifications

Excavator · Caterpillar · CAT®M312 · Attachments

Finished length1,250 mm

Locate this hose

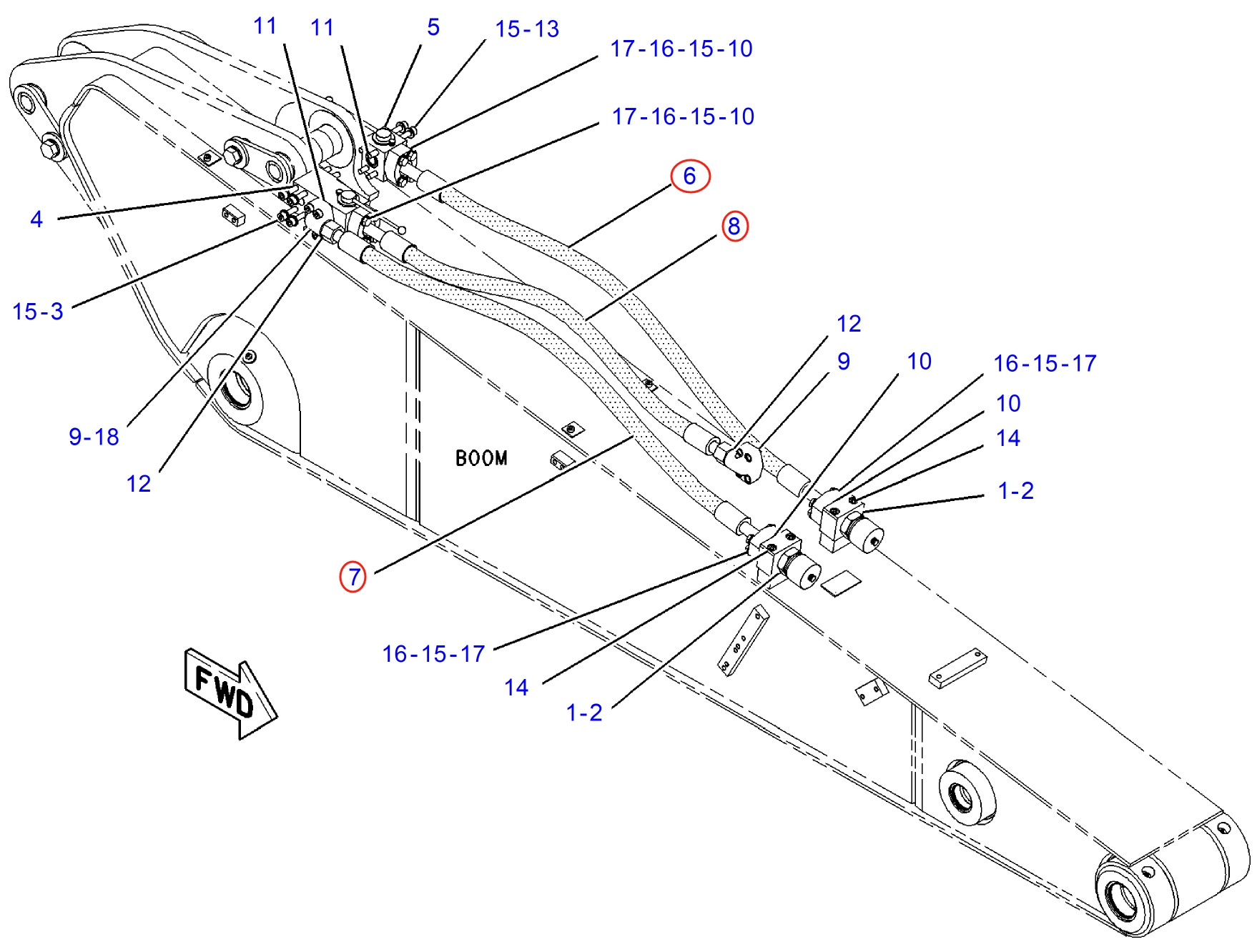

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 129-9141 before removing the hose.

Caterpillar CAT®M312 installation diagram showing hydraulic hose 129-9141 at Pipe No. 6 — **Caterpillar CAT®M312**Part 129-9141 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 129-9141
Diagram pipe number: 6
Installation route: 分流阀(小臂)~堵头
Hose specification: DN19;4SP-12;35Mpa
Finished length: 1,250 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

179-5697

Installation route: 分配阀~大臂(中段)

Length: 5,800 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6

138-1909

Installation route: 推土铲油缸~电磁阀(推土铲油缸)

Length: 500 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

138-1904

Installation route: 推土铲油缸~铁管(大臂下)

Length: 800 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

150-7617

Installation route: 蓄能器电磁阀(驾驶室升降架下)~大臂(前段)

Length: 5,000 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

138-1904

Installation route: 推土铲油缸~铁管(大臂下)

Length: 800 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

139-1941

Installation route: 电磁阀(推土铲油缸)~铁管(大臂下)

Length: 650 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

179-5694

Installation route: 分配阀~大臂(前段)

Length: 6,950 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

155-6478

Installation route: 大臂(前段)~大臂(后段)

Length: 7,700 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
