Individual hose record
2184-1197D1 Hose Preview
Excavator · Doosan · DX140LCR · Boom Assembly
Finished length900 mm
Repair specifications
- Part number
- 2184-1197D1
- Diagram pipe number
- 66
- Installation route
- Steel line (boom cylinder) → control valve port A8Original Chinese: 铁管(大臂油缸)~分配阀A8口
- Hose specification
- DN19;4SH-12;42MPa
- Finished length
- 900 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1

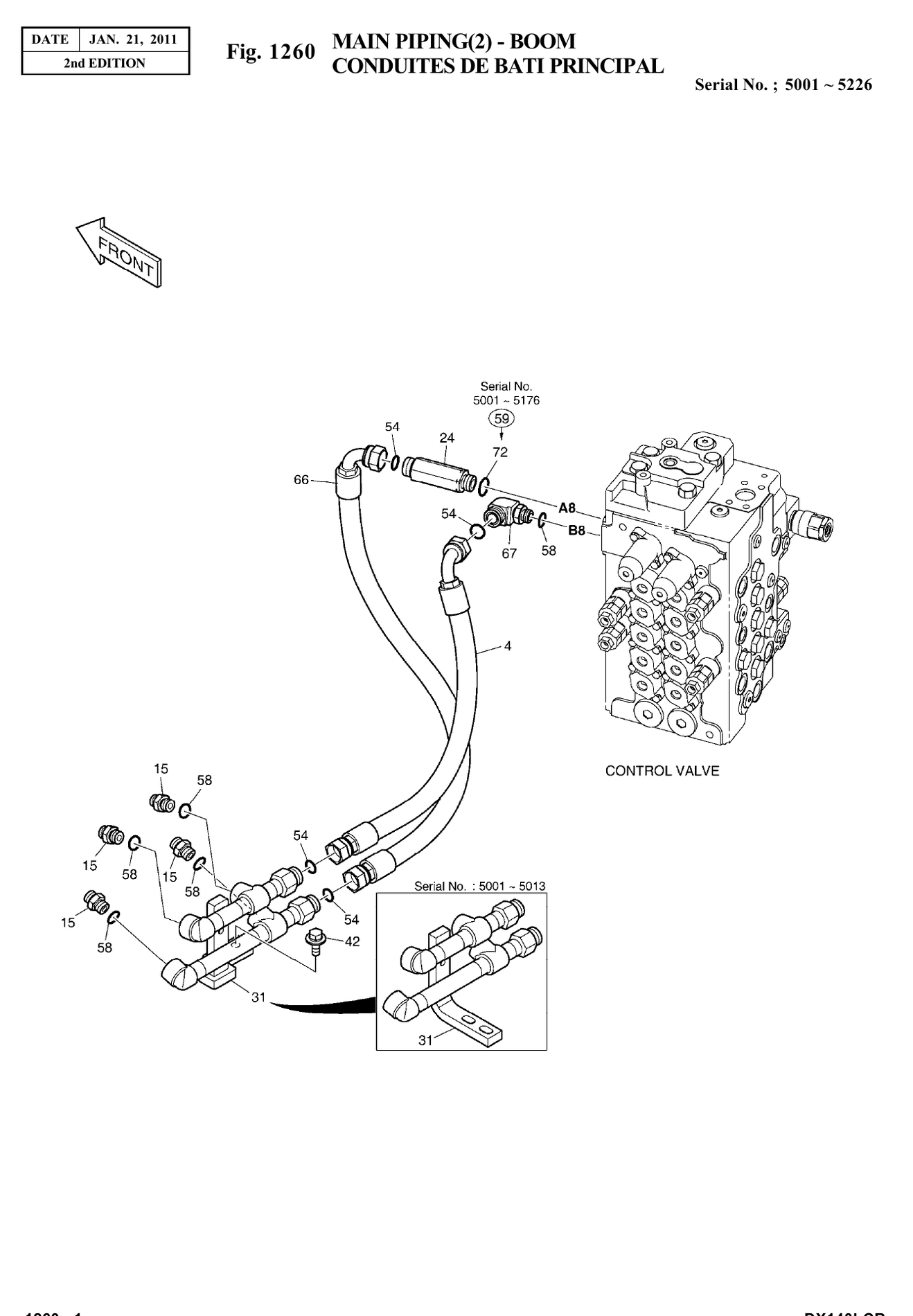

Manual diagrams
Installation and Exploded Views
A red marker identifies a reviewed hose location.
For reference only. Confirm the actual hose before fabrication.
