Individual hose record
4312101 Hose Repair Specifications
Excavator · Hitachi · ZX50U-5N · Attachments
Finished length300 mm
Locate this hose

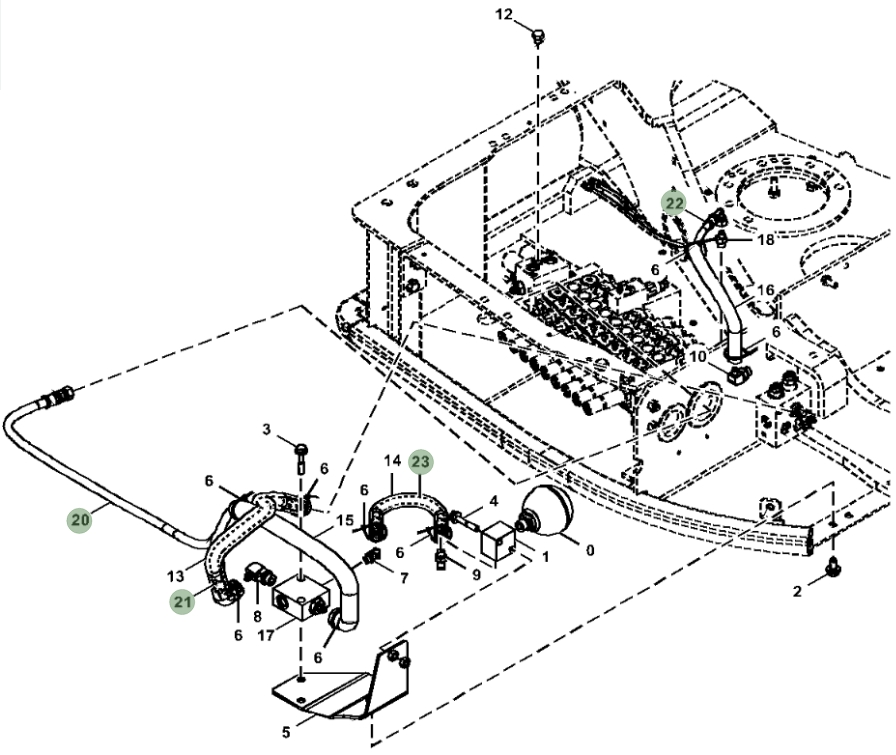

Installation diagram — Pipe No. 23
Locate Pipe No. 23 in the diagram, then confirm part number 4312101 before removing the hose.
Repair specifications
- Part number
- 4312101
- Diagram pipe number
- 23
- Installation route
- 蓄能器~过渡阀块(蓄能器)
- Hose specification
- DN6;1SN-04;7MPa
- Finished length
- 300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
