Individual hose record

KHJ2327 Hose Repair Specifications

Excavator · Case · CX130E LC · Control Lever

Finished length1,550 mm

Locate this hose

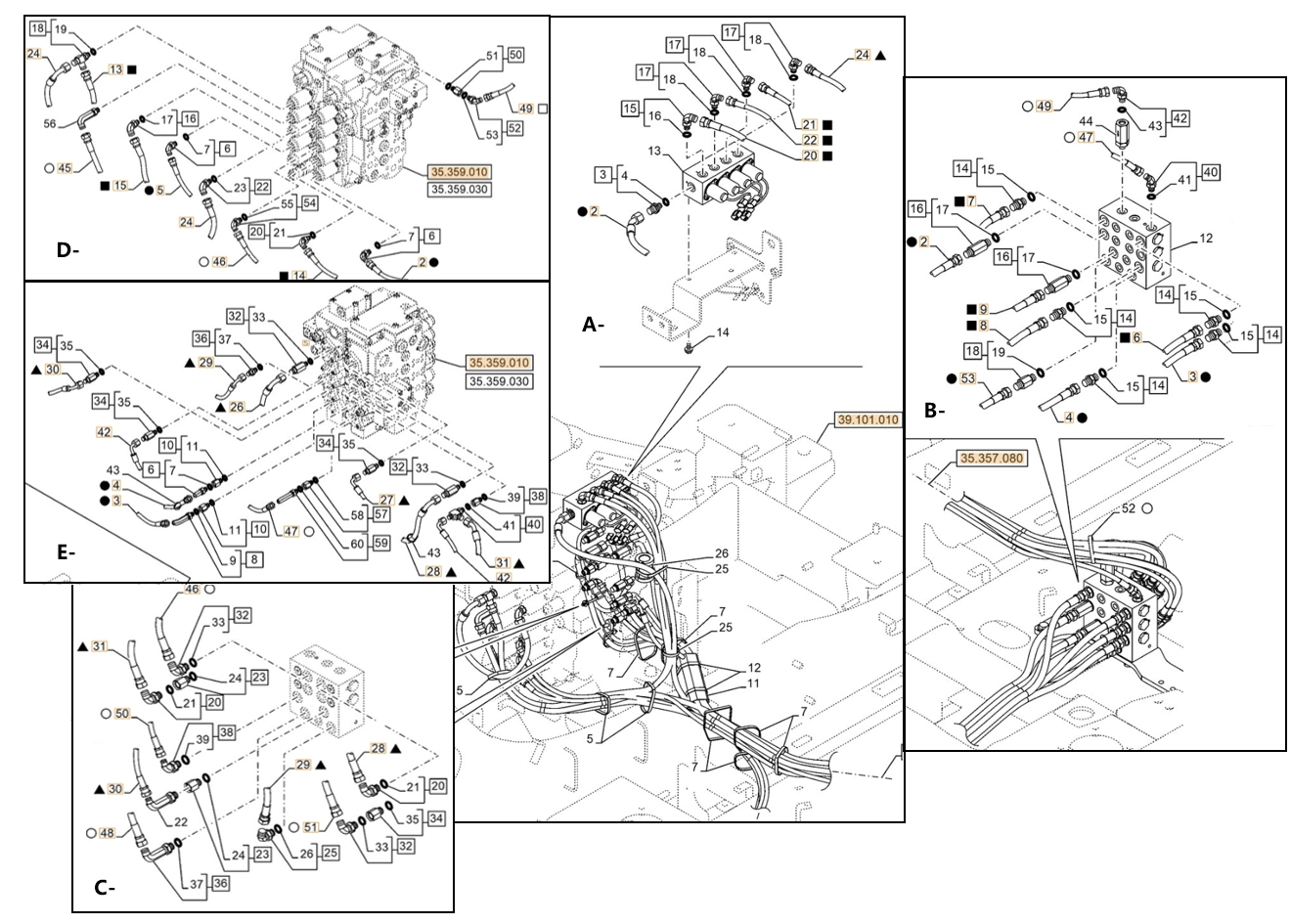

Installation diagram — Pipe No. B47-E27

Locate Pipe No. B47-E27 in the diagram, then confirm part number KHJ2327 before removing the hose.

Part number: KHJ2327
Diagram pipe number: B47-E27
Installation route: 中转接头~分配阀后
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,550 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. C46-E26

Installation route: 中转接头~分配阀后

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. B21-E52

Installation route: 中转接头~液压油箱

Length: 2,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. C28-D13

Installation route: 中转接头~分配阀前

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. C48-E28

Installation route: 中转接头~分配阀后

Length: 1,500 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
