Individual hose record
7V-7377 Hose Repair Specifications
Excavator · Caterpillar · CAT®219 · Attachments – Lock Valve
Finished length402 mm
Locate this hose

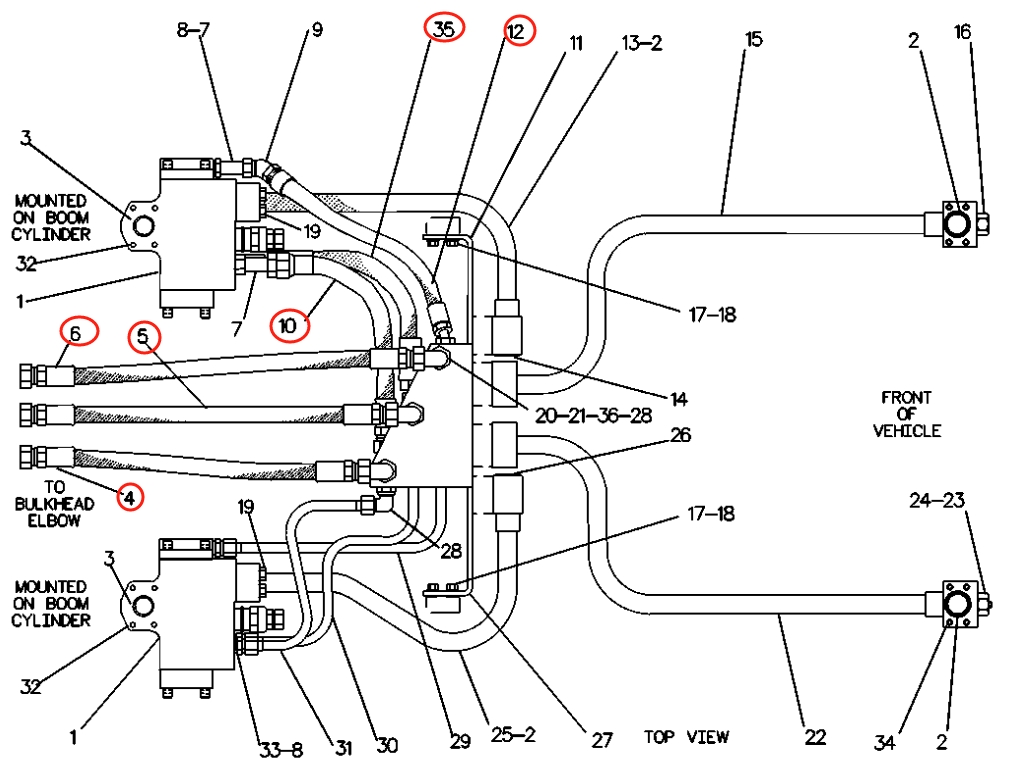

Installation diagram — Pipe No. 35
Locate Pipe No. 35 in the diagram, then confirm part number 7V-7377 before removing the hose.
Repair specifications
- Part number
- 7V-7377
- Diagram pipe number
- 35
- Installation route
- 大臂油缸锁止阀
- Hose specification
- DN10;2SN-6;33Mpa
- Finished length
- 402 mm
- Working pressure
- 33 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
