Individual hose record

4656032 Hose Repair Specifications

Excavator · Hitachi · ZX230W-5N · Hydraulic Tank

Finished length3,300 mm

Locate this hose

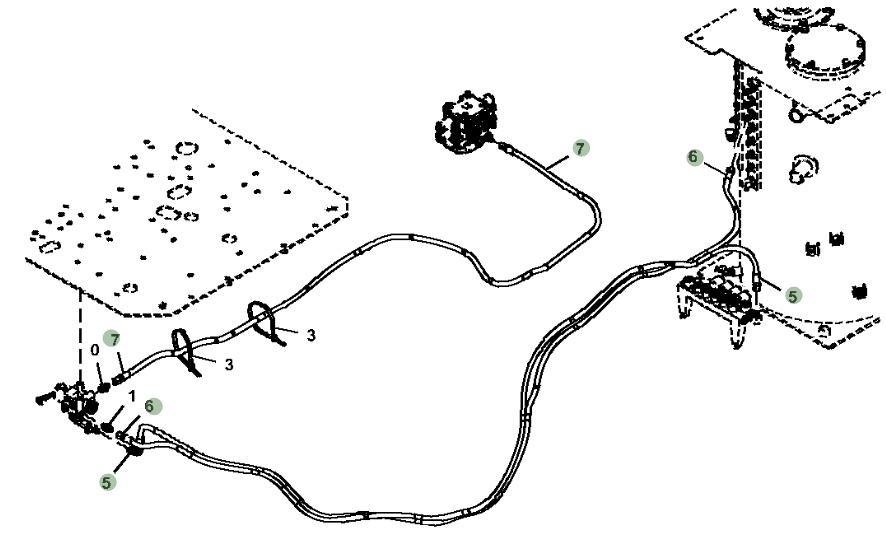

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 4656032 before removing the hose.

Hitachi ZX230W-5N installation diagram showing hydraulic hose 4656032 at Pipe No. 6 — Hitachi ZX230W-5NPart 4656032 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 4656032
Diagram pipe number: 6
Installation route: 液压油箱~进回油阀
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,300 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 18

4441941

Installation route: 回油铁管(液压油箱)~蓄能器

Length: 1,870 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角

View full repair specifications

Diagram Pipe No. 23

4634380

Installation route: 液压油箱~中转接头

Length: 1,400 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
