Individual hose record

KHJ12010 Hose Repair Specifications

Excavator · Case · CX470B · Hydraulic Tank

Finished length2,000 mm

Locate this hose

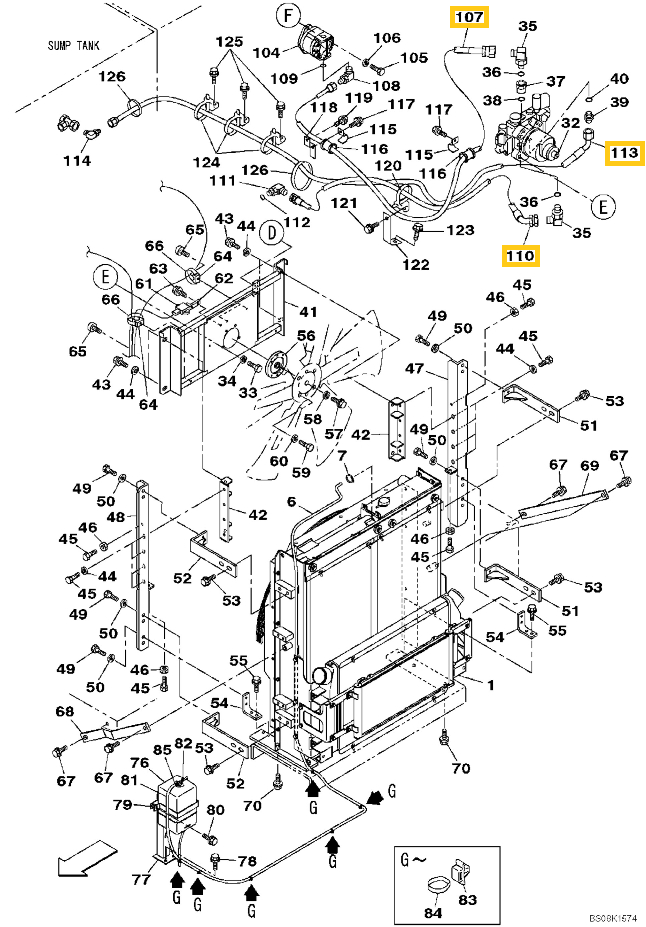

Installation diagram — Pipe No. 113

Locate Pipe No. 113 in the diagram, then confirm part number KHJ12010 before removing the hose.

Part number: KHJ12010
Diagram pipe number: 113
Installation route: 液压油箱~风扇马达
Hose specification: DN13;4SH-08;41.5MPa
Finished length: 2,000 mm
Working pressure: 41.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 6

Installation route: 液压油箱~过渡阀块左(液压油箱)

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 5

Installation route: 液压油箱~过渡阀块右(液压油箱)

Length: 320 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
