Individual hose record

161159A1 Hose Repair Specifications

Excavator · Case · CX180 · Swivel Joint

Finished length430 mm

Locate this hose

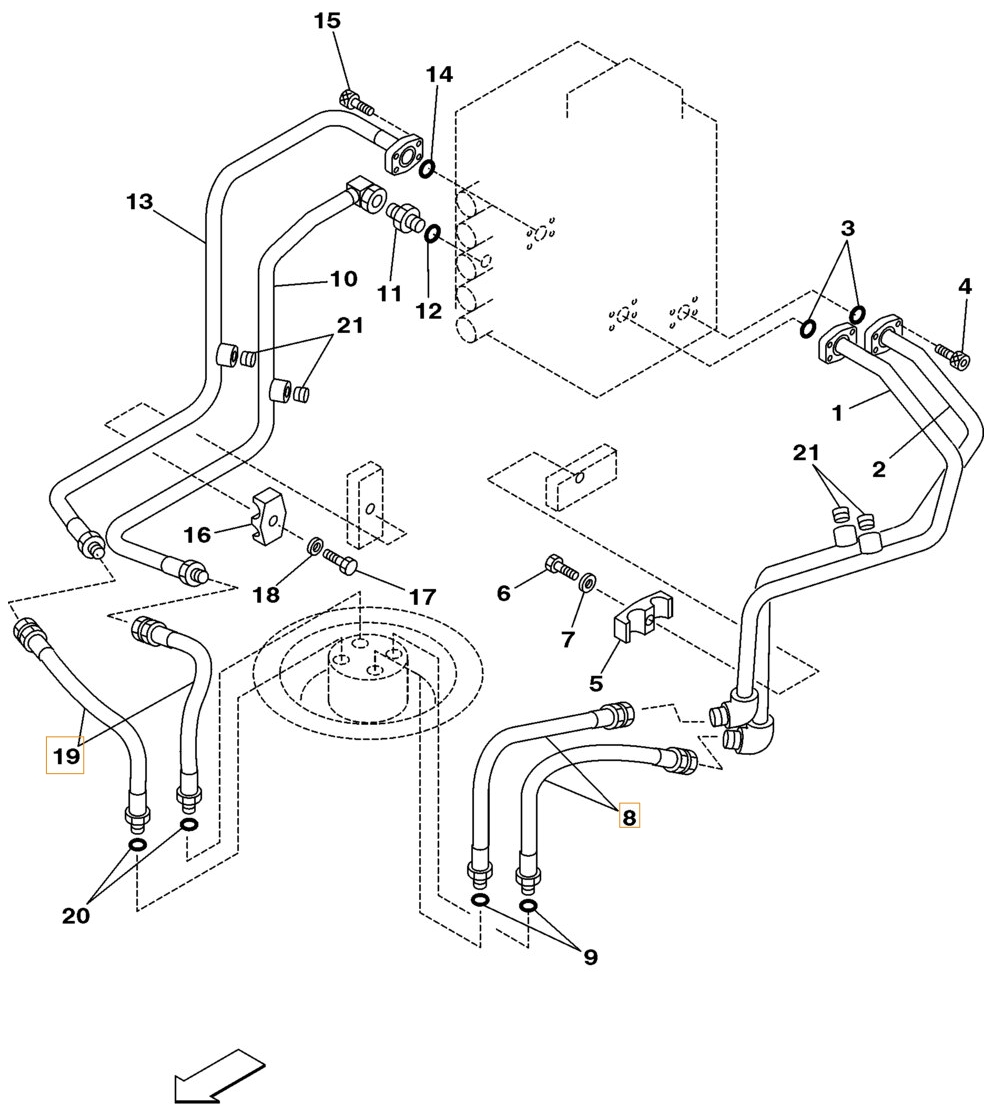

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 161159A1 before removing the hose.

Part number: 161159A1
Diagram pipe number: 19
Installation route: 回转接头~分配阀右
Hose specification: DN19;4SP-12;35MPa
Finished length: 430 mm
Working pressure: 35 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 8

Installation route: 回转接头~分配阀左

Length: 430 mm
Specification: DN19;4SP-12;35MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 12

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 1,960 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
