Individual hose record

7V-1038 Hose Repair Specifications

Excavator · Caterpillar · CAT®219D · Attachments

Finished length279 mm

Locate this hose

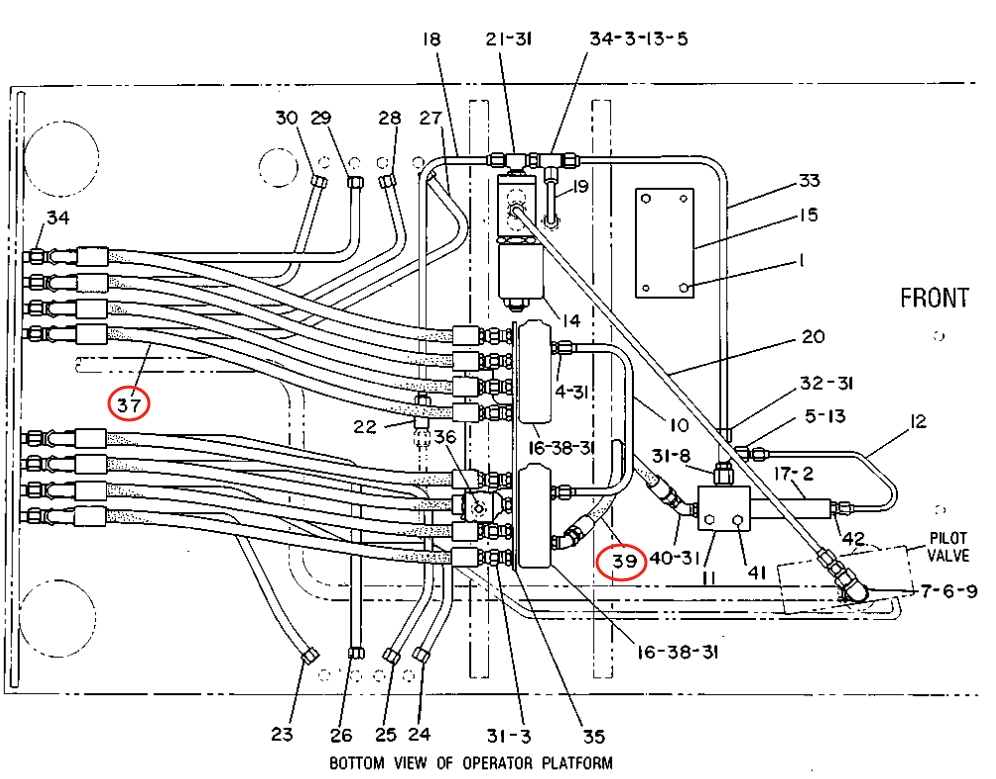

Installation diagram — Pipe No. 39

Locate Pipe No. 39 in the diagram, then confirm part number 7V-1038 before removing the hose.

Caterpillar CAT®219D installation diagram showing hydraulic hose 7V-1038 at Pipe No. 39 — Caterpillar CAT®219DPart 7V-1038 · Pipe No. 39Open full-size diagram

Repair specifications

Part number: 7V-1038
Diagram pipe number: 39
Installation route: 过渡阀块(驾驶室前)~接线板(驾驶室中)
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 279 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 14

5C-4391

Installation route: 溢流阀(大臂)~履带制动阀

Length: 670 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 59

3V-6802

Installation route: 选择阀~过渡阀块(分配阀后)

Length: 1,320 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 8

6W-7640

Installation route: 大臂(附加装置)~回油铁管

Length: 1,400 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
