Individual hose record

KNJ15690 Hose Repair Specifications

Excavator · Case · CX130C-8 · Boom Assembly

Finished length860 mm

Locate this hose

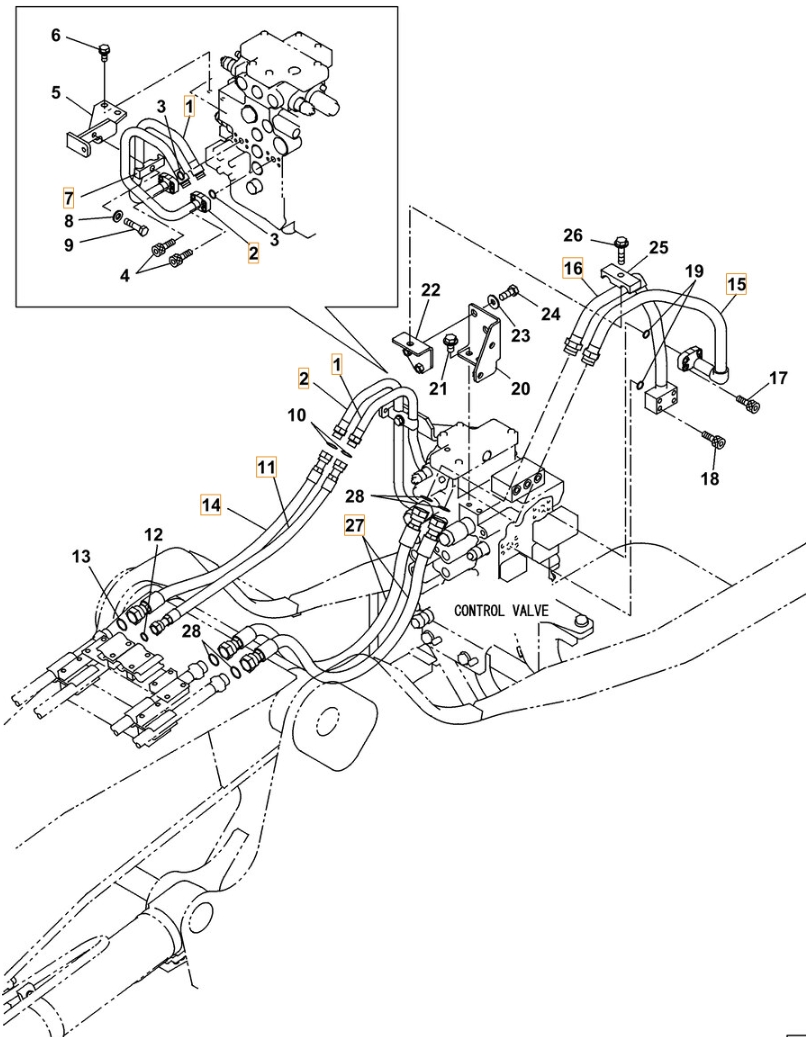

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KNJ15690 before removing the hose.

Part number: KNJ15690
Diagram pipe number: 11
Installation route: 大臂左3
Hose specification: DN16;4SP-10;38MPa
Finished length: 860 mm
Working pressure: 38 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 14

Installation route: 大臂左4

Length: 900 mm
Specification: DN16;4SP-10;38MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 11

Installation route: 大臂油缸左1/左4

Length: 750 mm
Specification: DN16;4SP-10;38MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 9

Installation route: 小臂油缸

Length: 850 mm
Specification: DN19;4SP-12;35MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹(美制内螺纹)平面密封

For reference only. Confirm the actual hose before fabrication.
