Individual hose record

2V-8678 Hose Repair Specifications

Excavator · Caterpillar · CAT®235C · Hydraulic Pump

Finished length1,170 mm

Locate this hose

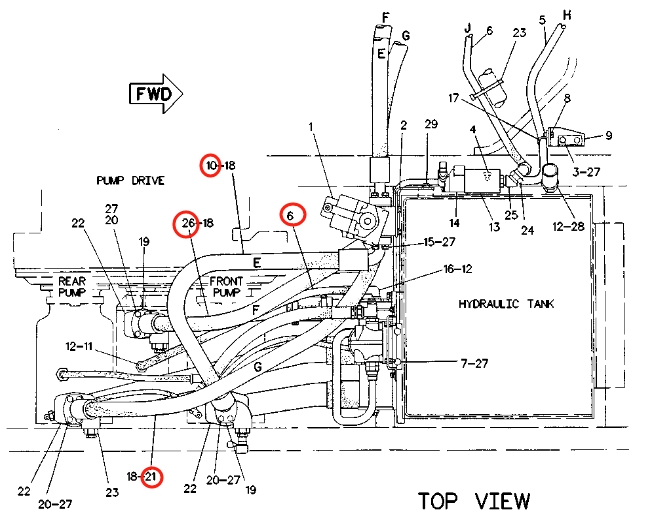

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 2V-8678 before removing the hose.

Caterpillar CAT®235C installation diagram showing hydraulic hose 2V-8678 at Pipe No. 6 — Caterpillar CAT®235CPart 2V-8678 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 2V-8678
Diagram pipe number: 6
Installation route: 液压泵~液压油箱
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 1,170 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 23

2V-8679

Installation route: 液压泵左~液压泵右

Length: 794 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
