Individual hose record

4I-1077 Hose Repair Specifications

Excavator · Caterpillar · CAT®315B FM L · Hydraulic Pump

Finished length1,150 mm

Locate this hose

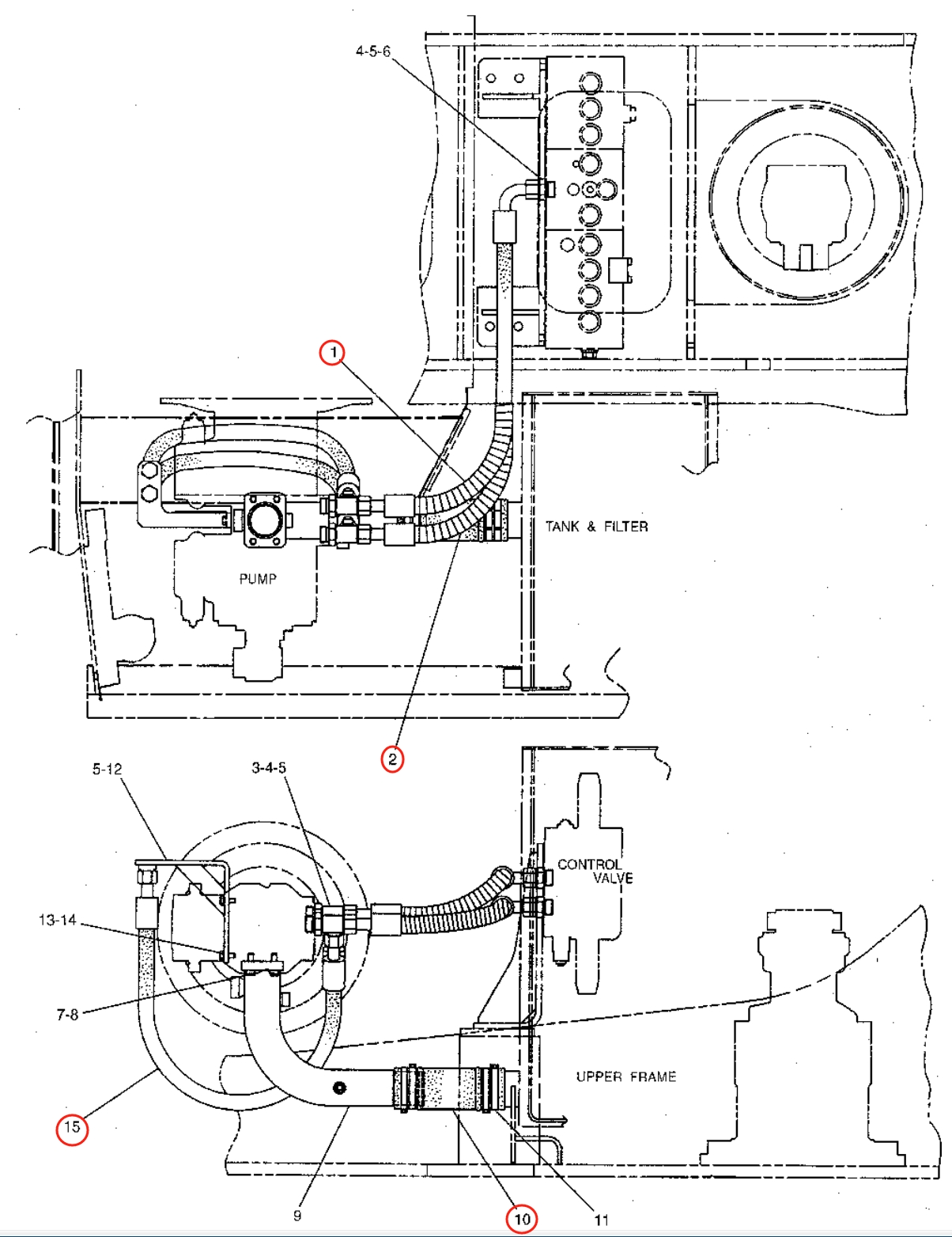

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 4I-1077 before removing the hose.

Caterpillar CAT®315B FM L installation diagram showing hydraulic hose 4I-1077 at Pipe No. 15
Caterpillar CAT®315B FM LPart 4I-1077 · Pipe No. 15Open full-size diagram

Repair specifications

Part number
4I-1077
Diagram pipe number
15
Installation route
液压泵~堵头(减震管)
Hose specification
DN19;4SP-12;35Mpa
Finished length
1,150 mm
Working pressure
35 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 19

135-1097

Installation route: 液压泵~蓄能器电磁阀(液压油箱后)

Length
850 mm
Specification
DN6;-4;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

Diagram Pipe No. 1

7I-0178

Installation route: 液压泵~后中转接头

Length
3,200 mm
Specification
DN10;-6;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
