Individual hose record
4304470 Hose Repair Specifications
Excavator · Hitachi · ZX800 · Solenoid Valve
Finished length1,250 mm
Locate this hose

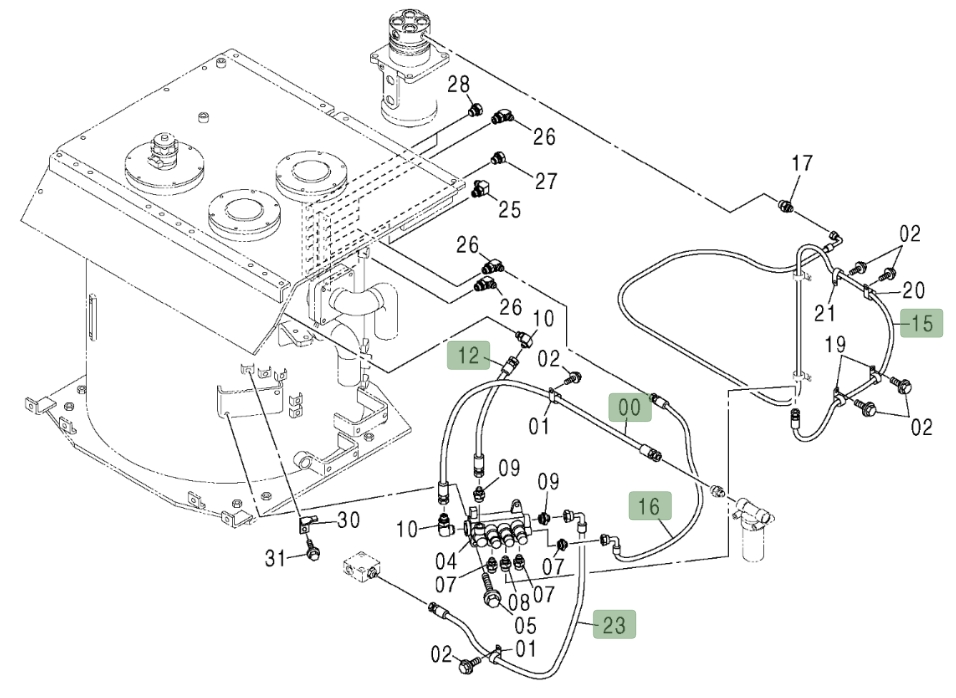

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 4304470 before removing the hose.
Repair specifications
- Part number
- 4304470
- Diagram pipe number
- 0
- Installation route
- 电磁阀(液压油箱)~先导滤芯
- Hose specification
- DN12;1SN-08;7Mpa
- Finished length
- 1,250 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
