Individual hose record
6W-1342 Hose Repair Specifications
Excavator · Caterpillar · CAT®219 · Swivel Joint
Finished length1,010 mm
Locate this hose

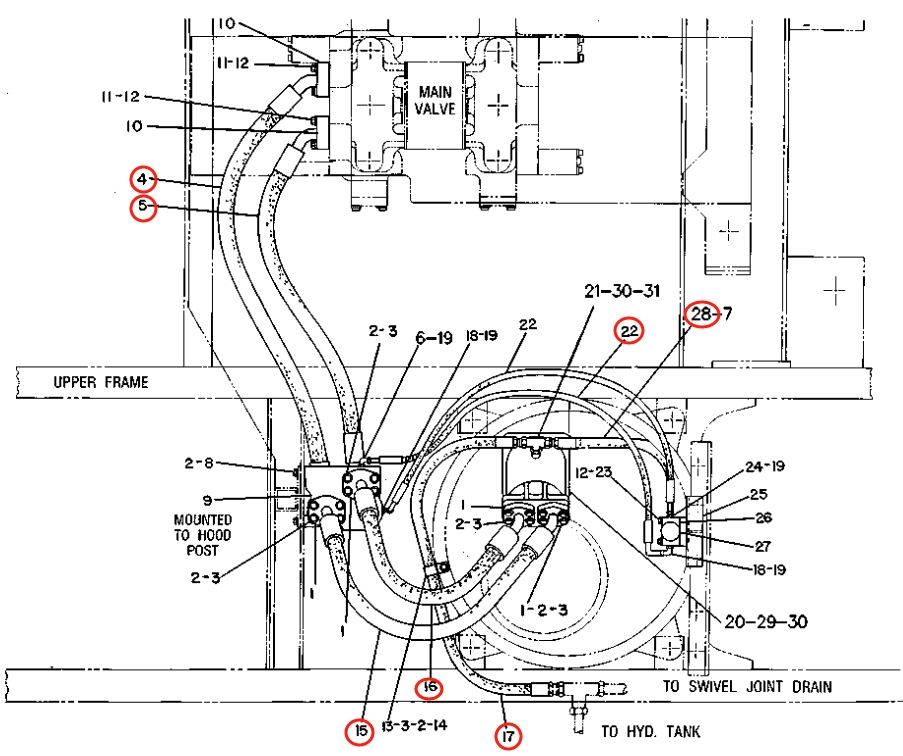

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 6W-1342 before removing the hose.
Repair specifications
- Part number
- 6W-1342
- Diagram pipe number
- 17
- Installation route
- 回转接头~液压油箱
- Hose specification
- DN16;1SN-10;10.5Mpa
- Finished length
- 1,010 mm
- Working pressure
- 10.5 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
