Individual hose record
381-5866 Hose Repair Specifications
Excavator · Caterpillar · CAT®313F · Attachments – Breaker
Finished length510 mm
Locate this hose

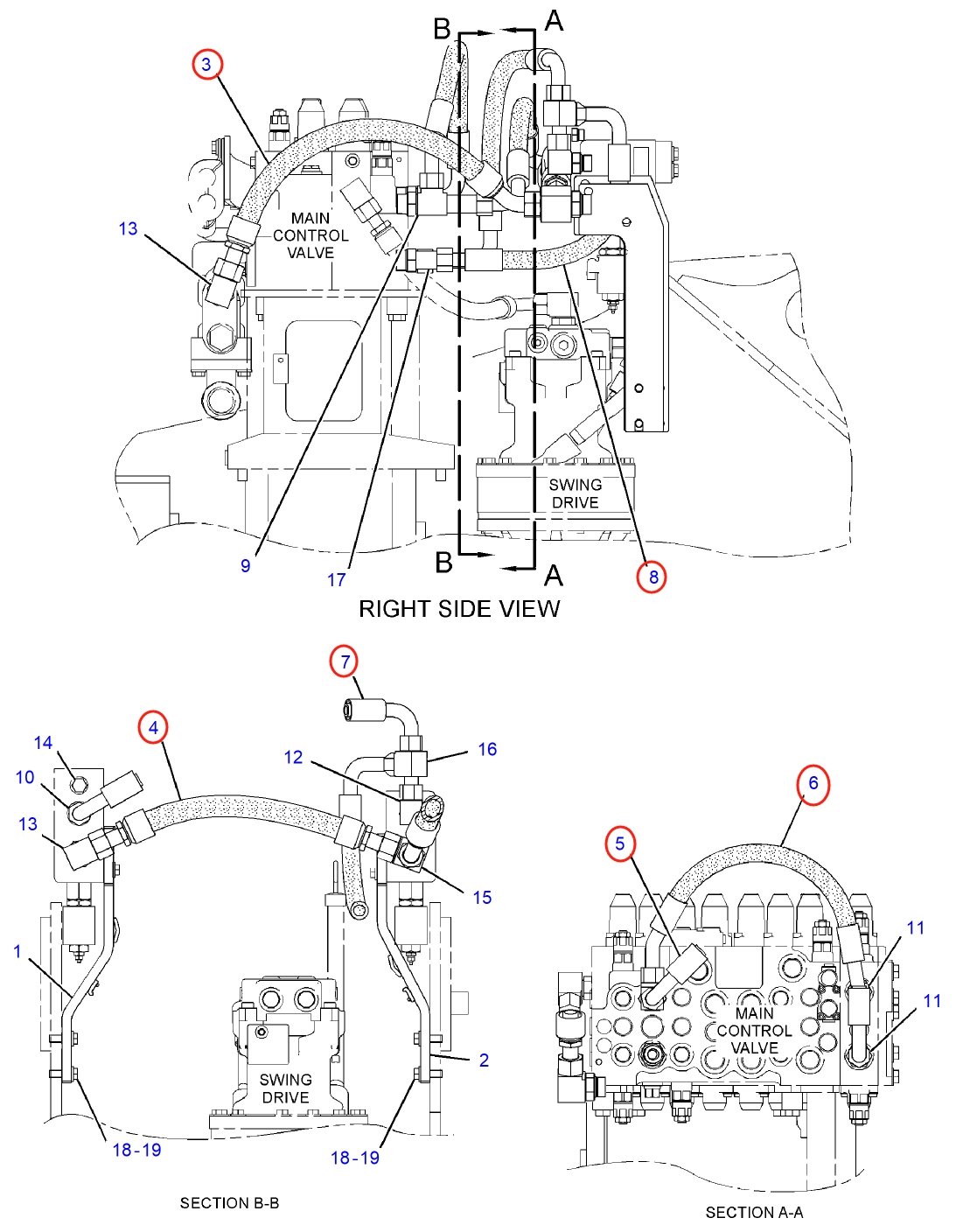

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 381-5866 before removing the hose.
Repair specifications
- Part number
- 381-5866
- Diagram pipe number
- 4
- Installation route
- 左过渡阀块(破碎器)~右过渡阀块(破碎器)
- Hose specification
- DN25;1SN-16;7Mpa
- Finished length
- 510 mm
- Working pressure
- 7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
