108-9097 Hose Repair Specifications

Excavator · Caterpillar · CAT®312B · Grease Lines

Finished length1,520 mm

Locate this hose

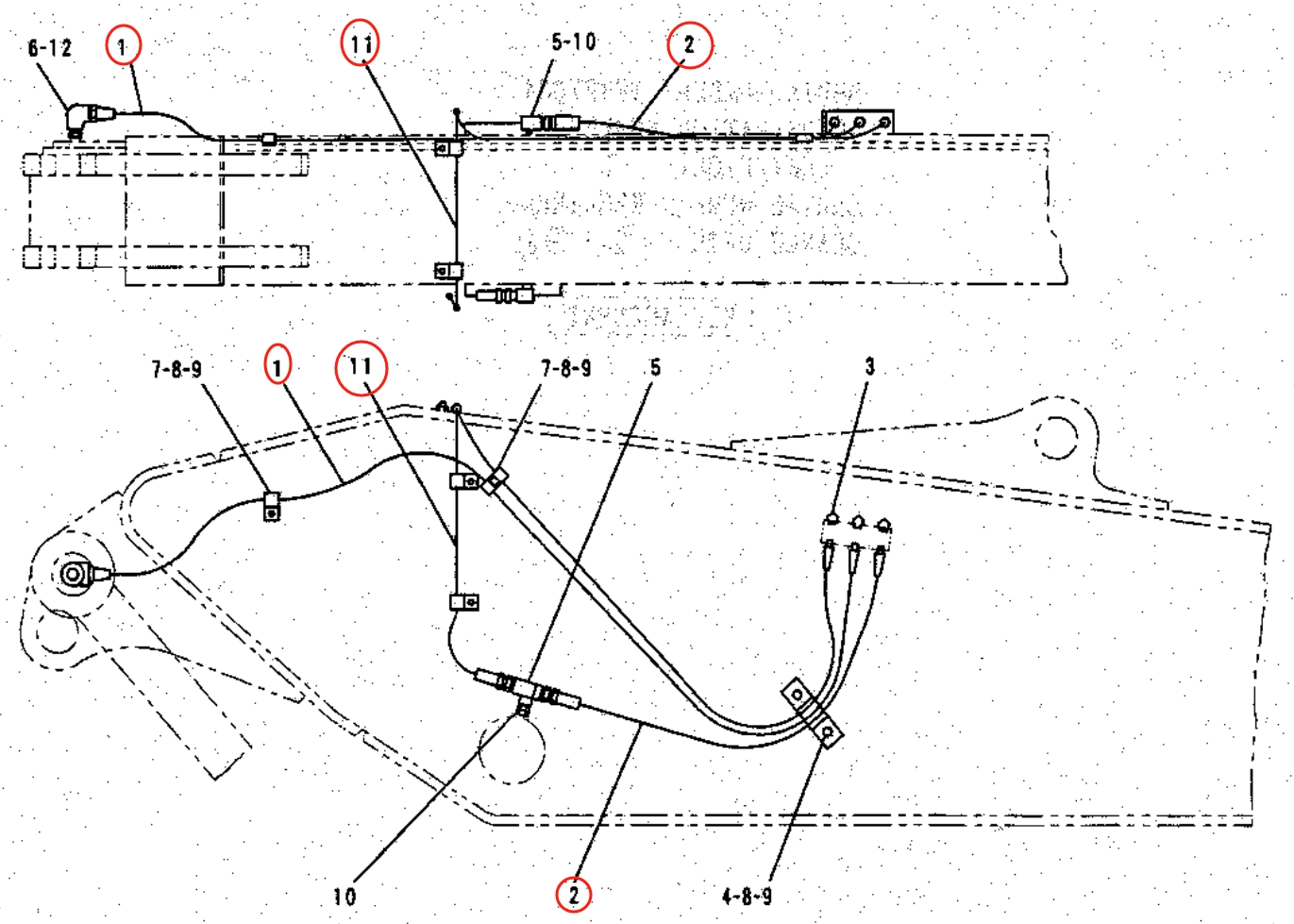

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 108-9097 before removing the hose.

Caterpillar CAT®312B installation diagram showing hydraulic hose 108-9097 at Pipe No. 1 — Caterpillar CAT®312BPart 108-9097 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 108-9097
Diagram pipe number: 1
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;-4;10.3Mpa
Finished length: 1,520 mm
Working pressure: 10.3 MPa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

101-2170

Installation route: 小臂销黄油管

Length: 730 mm
Specification: DN6;-4;19.2Mpa
Left fitting: 美制锥形外螺纹30°内锥
Right fitting: 美制锥形外螺纹

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
